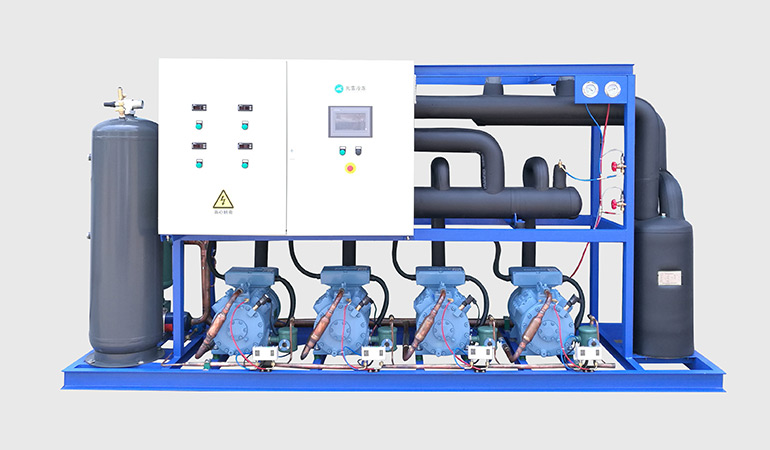

Air-cooled Semi-hermetic Compressor Rack (-5~5℃)

Our productively and efficiently running Air-cooled Semi-hermetic Compressor Rack stands alone with integrated multiple parallel compressors that allow centralized control.

Inquire Now

Product Description

Our productively and efficiently running Air-cooled Semi-hermetic Compressor Rack stands alone with integrated multiple parallel compressors that allow centralized control. Featuring reliable semi-hermetic compressor, reservoirs, condenser, inhale pipe, and exhaust pipe, this air-cooling compressor rack makes a high standard refrigeration cycle for matchless cooling at the temperature of -5°C~5°C. Additional specs include; control box, crankcase heater, oil separator, oil filter, damping pipe, oil balancer, dry filter, air and liquid separator, pressure differentiation valve, and pressure gauge.

We always manufacture and test all Air-cooled Semi-hermetic Compressor Rack parts carefully to maintain OEM-QUALITY standards.

Key Features:

· High quality Air-cooled Semi-hermetic Compressor Rack

· Evaporation temperature: -7℃

· Environmental Temperature: 35℃

· Low noise

· Less vibration and high efficiency

· Improved performance reliability

· Less power consumption

· Over loading and overheating protection

· Compact structure and less occupation

· Adjustable energy levels according to cooling load

· Easy to operate

· Power supply: 380V/3P/50Hz

· Compressor type: semi-hermetic style piston compressor

Main Components:

· Control Box

· Cylinder head cooling fan

· Oil pressure guard with pump

· Pressure gauge

· Pressure controller

· Sight glass

· Dry filter

· Air and liquid separator

· Inhale filter

Customized options:

We are currently offering the following customizations;

· Two parallel compressor rack

· Three parallel compressor rack

· Four parallel compressor rack

· Five parallel compressor rack

This Air-cooled Semi-hermetic Compressor Rack with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor rack for other refrigerants.

Product Features

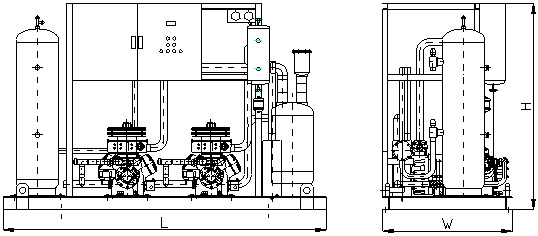

● Two compressors in parallel:

Type					BBF2
					20MB	30MB	40MB	50MB	60MB	70MB	80MB	100MB
Compressor type	Type				4VES-10	4PES-15	4NES-20	4HE-25	4GE-30	6HE-35	6GE-40	6FE-50
	Style				Semi-hermetic piston compressor
	Quantity				2	2	2	2	2	2	2	2
Cooling capacity and power	Evaporation --5℃			Cooling capacity(KW)	41.6	57.6	68	90.8	105.2	136	156.2	188.2
	Evaporation --5℃			Power(KW)	14.42	20.1	23.62	31.72	36.56	47.8	54.8	66.6
	Evaporation -10℃			Cooling capacity(KW)	33.3	46	54.4	72.8	84.4	109.4	125.4	151.4
	Evaporation -10℃			Power(KW)	13.3	18.46	21.76	29.32	33.86	44.2	50.6	61.8
	Evaporation -15℃			Cooling capacity(KW)	26.16	35.98	42.8	57.6	67.2	86.4	99.2	120
	Evaporation -15℃			Power(KW)	12.04	16.64	19.72	26.66	30.88	40	46.2	56.4
Storage temperature( ℃)					-5～5℃
Refrigerant					R22
Power supply					380V/3P/50Hz
Port		inhale port/(mm)			φ42	φ54	φ54	φ76	φ76	Φ89	Φ89	Φ89
		Liquid outlet port (mm)			φ22	φ22	φ28	φ28	Φ35	Φ35	φ35	Φ42
		Exhaust port (mm)			φ35	φ35	φ42	Φ54	Φ54	φ54	φ54	Φ76
		Liquid inlet port(mm)			φ28	φ28	φ35	φ35	Φ42	Φ42	φ42	Φ54
Boundary dimensions			L (mm)		2550	2550	2550	2550	2550	2550	2550	2550
			W (mm)		1200	1200	1200	1200	1200	1200	1200	1200
			H (mm)		1850	1850	1850	1850	1850	1850	1850	1850

Unit design condition: evaporation temperature -7℃,environment temperature 35℃,condenser as evaporation temperature -7℃

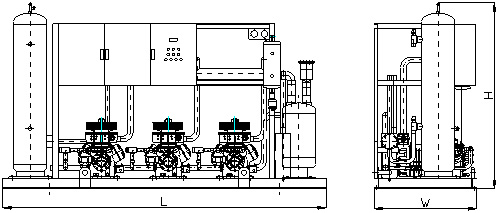

● Three compressors in parallel:

Type					BBF3
					30MB	45MB	60MB	75MB	90MB	105MB	120MB	150MB
Compressor type	Type				4VES-10	4PES-15	4NES-20	4HE-25	4GE-30	6HE-35	6GE-40	6FE-50
	Style				Semi-hermetic piston compressor
	Quantity				3	3	3	3	3	3	3	3
Cooling capacity and power	Evaporation --5℃			Cooling capacity(KW)	62.4	86.4	102	136.2	157.8	204	234.3	282.3
	Evaporation --5℃			Power(KW)	21.63	30.15	35.43	47.58	54.84	71.7	82.2	99.9
	Evaporation -10℃			Cooling capacity(KW)	49.95	69	81.6	109.2	126.6	164.1	188.1	227.1
	Evaporation -10℃			Power(KW)	19.95	27.69	32.64	43.98	50.79	66.3	75.9	92.7
	Evaporation -15℃			Cooling capacity(KW)	39.24	53.97	64.2	86.4	100.8	129.6	148.8	180
	Evaporation -15℃			Power(KW)	18.06	24.96	29.58	39.99	46.32	60	69.3	84.6
Storage temperature( ℃)					-5～5℃
Refrigerant					R22
Power supply					380V/3P/50Hz
Port		inhale port/(mm)			φ54	φ76	φ76	Φ89	Φ89	φ108	φ108	φ108
		Liquid outlet port (mm)			φ22	φ28	Φ35	φ35	φ35	φ42	φ42	Φ54
		Exhaust port (mm)			Φ42	Φ54	Φ54	φ54	φ54	φ66	φ66	Φ76
		Liquid inlet port(mm)			φ28	φ35	Φ42	φ42	φ42	φ54	φ54	Φ66
Boundary dimensions			L (mm)		3150	3150	3150	3150	3150	3150	3150	3150
			W (mm)		1000	1000	1000	1000	1000	1000	1000	1000
			H (mm)		1850	1850	1850	1850	1850	1850	2000	2000

Unit design condition: evaporation temperature -7℃,environment temperature 35℃,condenser as evaporation temperature -7℃

● Four Compressors in parallel:

Type					BBF4
					40MB	60MB	80MB	100MB	120MB	140MB	160MB	200MB
Compressor type	Type				4VES-10	4PES-15	4NES-20	4HE-25	4GE-30	6HE-35	6GE-40	6FE-50
	Style				Semi-hermetic piston compressor
	Quantity				4	4	4	4	4	4	4	4
Cooling capacity and power	Evaporation --5℃			Cooling capacity(KW)	83.2	115.2	136	181.6	210.4	272	312.4	376.4
	Evaporation --5℃			Power(KW)	28.84	40.2	47.24	63.44	73.12	95.6	109.6	133.2
	Evaporation -10℃			Cooling capacity(KW)	66.6	92	108.8	145.6	168.8	218.8	250.8	302.8
	Evaporation -10℃			Power(KW)	26.6	36.92	43.52	58.64	67.72	88.4	101.2	123.6
	Evaporation -15℃			Cooling capacity(KW)	52.32	71.96	85.6	115.2	134.4	172.8	198.4	240
	Evaporation -15℃			Power(KW)	24.08	33.28	39.44	53.32	61.76	80	92.4	112.8
Storage temperature( ℃)					-5～5℃
Refrigerant					R22
Power supply					380V/3P/50Hz
Port		inhale port/(mm)			φ54	Φ89	Φ89	Φ89	φ108	φ108	φ108	φ133
		Liquid outlet port (mm)			φ28	Φ35	φ35	Φ42	φ42	Φ54	Φ54	Φ54
		Exhaust port (mm)			φ42	φ54	φ54	Φ66	φ66	Φ79	φ79	Φ108
		Liquid inlet port(mm)			φ35	Φ42	φ42	Φ54	φ54	Φ66	Φ66	Φ66
Boundary dimensions			L (mm)		3800	3800	3800	3800	3800	3800	3800	3800
			W (mm)		1000	1000	1000	1000	1000	1000	1000	1000
			H (mm)		1850	1850	1850	1850	2000	2000	2000	2000
