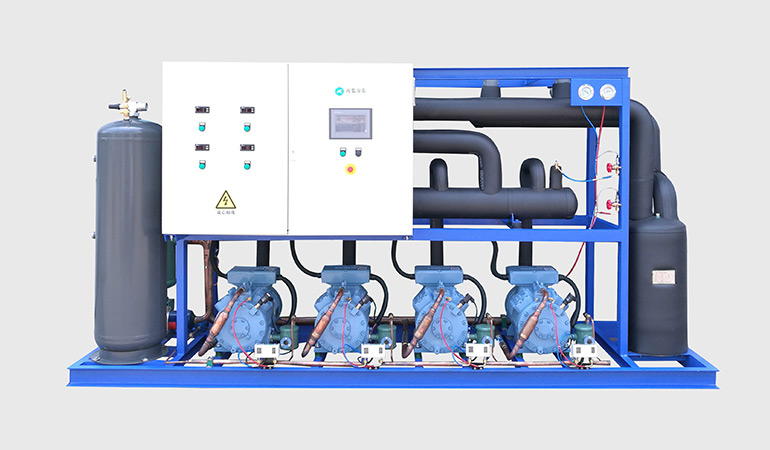

Air Cooled Semi-hermetic Compressor Rack Compatible to Low Temperature Refrigeration (-30~-15℃)

Standing tall among all cooling units, our Air Cooled Semi-hermetic Compressor Rack is available in different customizations without sacrificing the reliability and quality. Featuring reservoir, condenser, inhale pipe, exhaust pipe, this multi-parallelized refrigeration compressor allows centralized control. Moreover, it takes less space and produces no noise to keep the working environment healthy. With -30～-15℃ storage temperature, this Air-Cooled Semi-hermetic Compressor Rack is ideal for low-temperature refrigeration at a large scale.

We always manufacture and test all Air-cooled Semi-hermetic Compressor Rack parts carefully to maintain OEM-QUALITY standards.

Key Features:

· High quality Air-cooled Semi-hermetic Compressor Rack

· Evaporation temperature: -23℃

· Environment temperature: 35℃

· Low noise

· Less vibration and high efficiency

· Improved performance reliability

· Less power consumption

· Over loading and overheating protection

· Compact structure and less occupation

· Adjustable energy levels according to cooling load

· Easy to operate

· Power supply: 380V/3P/50Hz

· Compressor type: semi-hermetic style piston compressor

Main Components:

· Control Box

· Cylinder head cooling fan

· Oil pressure guard with pump

· Pressure gauge

· Pressure controller

· Sight glass

· Dry filter

· Air and liquid separator

· Inhale filter

Customized options:

We are currently offering the following customizations;

· Two parallel compressor rack

· Three parallel compressor rack

· Four parallel compressor rack

· Five parallel compressor rack

This Air-cooled Semi-hermetic Compressor Rack with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor rack for other refrigerants.

● Two compressors in parallel:

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,CIC spray system must be added if evaporation is lower than -25℃, condenser as evaporation temperature -20℃

● Three compressors in parallel:

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,CIC spray system must be added if evaporation is lower than -25℃, condenser as evaporation temperature -23℃

● Four Compressors in parallel:

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,CIC spray system must be added if evaporation is lower than -25℃, condenser as evaporation temperature -23℃

Figures of air cooling units:

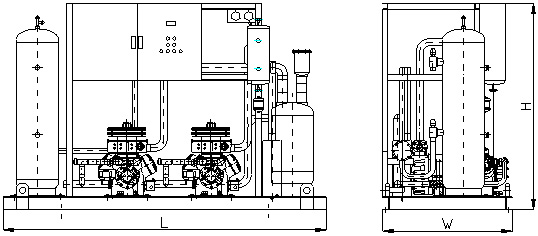

Two Compressors in Parallel

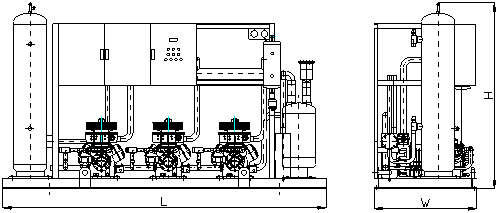

Three Compressors in Parallel

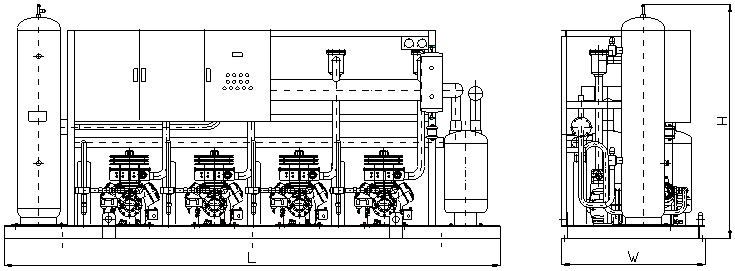

Four Compressors in Parallel

Five Compressors in Parallel
