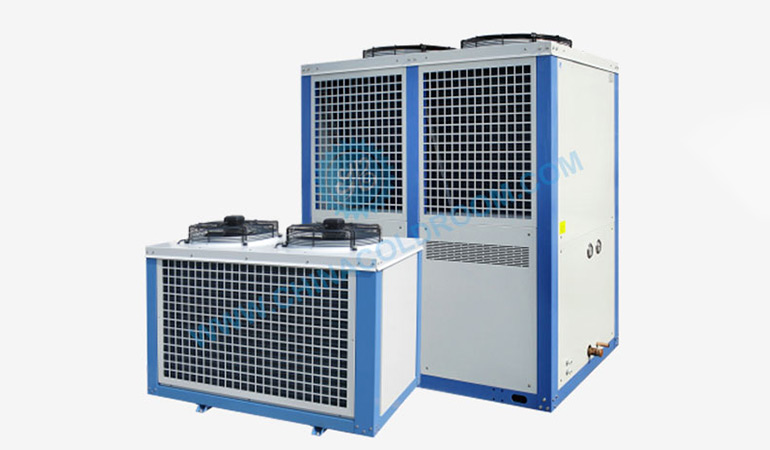

Air-Cooled Semi-hermetic Piston Condensing Unit (-10~5℃)

Designed to work efficiently in storage units, this Air-Cooled Semi-hermetic Piston Condensing Unit comes with optional integrated electrical parts. Featuring controllable fans, inquiry function, and failure alarm system, this piston condensing unit is an economic investment for all coming years. As it works at low temperatures, so it ensures protection in extreme conditions like exhaust temperature, over current, phase loss, and sudden compressor starting to maintain workflow.

Moreover, we always manufacture and test all Air-Cooled Semi-hermetic Piston Condensing Unit parts carefully to maintain OEM-QUALITY standards.

Key Features:

· Storage temperature: -10～5℃

· Power supply: 380V/3P/50Hz

· Evaporation temperature: -10℃

· Environment temperature: 35℃

· Inhale overheat: 10℃

· Control panel for icy room temperature and standard control panel (optional).

· Automatic ON and OFF function.

· Automatic control function for defrosting.

· Multi-protection guaranteed (high low-pressure protection, oil presser protection, compressor module protection, temperature and over current protection).

· Fans speed is controllable according to the changing temperature settings.

· Buzzer alarm in case of any failure while working.

· Easy to install and operate the control panel.

· Control panel displays alarm function, working status, and all temperature settings.

Main Components:

· Semi-hermetic Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser

· Liquid Accumulator

· Filter

· Pressure Controller

· High Pressure Gauge

· Low Pressure Gauge

· Terminal Box

· Sight Glasses

This Air-Cooled Semi-hermetic Piston Condensing Unit with all measurements and parts is compatible with R404A refrigerant. Please contact us if you need a condensing unit for other refrigerants.

Unit design condition: evaporation temperature -10℃,environment temperature 35℃,inhale overheat 10℃

Unit design condition: evaporation temperature -7℃, environment temperature 35℃, inhale overheat 10℃

Installation dimensions:

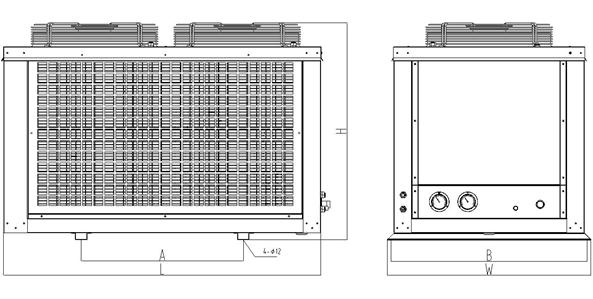

XJB03MB(Y)-XJB07MB(Y), XJB03LB(Y)-XJB06LB(Y):

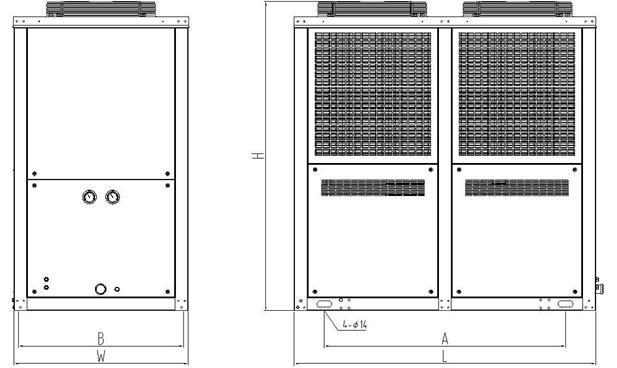

XJB10MB(Y)-XJB50MB(Y)、XJB08LB(Y)-XJB40LB(Y):
