Bitzer Air-Cooled Low Temperature Condensing Unit (-20~-15℃)

The world’s well known Bitzer Air-Cooled Low-Temperature Condensing Unit with optional integrated electrical parts comes with controllable fans, inquiry function, and failure alarm.

Inquire Now Next Product

Product Description

The world’s well known Bitzer Air-Cooled Low-Temperature Condensing Unit with optional integrated electrical parts comes with controllable fans, inquiry function, and failure alarm. As it works at low temperatures, so it ensures protection in extreme conditions like exhaust temperature, over current, phase loss, and sudden compressor starting to maintain workflow.

Moreover, we always manufacture and test all Bitzer Air-Cooled Low Temperature Condensing Unit parts carefully to maintain OEM-QUALITY standards.

Key Features:

· Storage temperature: -20～-15 ℃

· Power supply: 380V/3P/50Hz

· Evaporation temperature: -23℃

· Environment temperature: 35℃

· Inhale overheat: 10℃

· Control panel for icy room temperature and standard control panel (optional).

· Automatic ON and OFF function.

· Automatic control function for defrosting.

· Multi-protection guaranteed (high low-pressure protection, oil presser protection, compressor module protection, temperature and over current protection).

· Fans speed is controllable according to the changing temperature settings.

· Buzzer alarm in case of any failure while working.

· Easy to install and operate the control panel.

· Control panel displays alarm function, working status, and all temperature settings.

Main Components:

· Semi-hermetic Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser

· Liquid Accumulator

· Filter

· Pressure Controller

· High Pressure Gauge

· Low Pressure Gauge

· Terminal Box

· Sight Glasses

This Bitzer Air-Cooled Low Temperature Condensing Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a condensing unit for other refrigerants.

Product Features

Type				XJB
				04LB	05LB	06LB	09LB	12LB
Compressor type				4EES-4	4DES-5	4CES-6	4TES-9	4PES-12
Cooling capacity and power	Evaporation -20℃		Cooling capacity(W)	6.51	7.85	9.79	12.3	13.78
	Evaporation -20℃		Power(W)	3.73	4.48	5.55	6.67	7.33
	Evaporation -23℃		Cooling capacity(W)	5.55	6.71	8.4	10.41	11.58
	Evaporation -23℃		Power(W)	3.44	4.15	5.17	6.14	6.71
	Evaporation -25℃		Cooling capacity(W)	4.96	6.01	7.55	9.45	10.97
	Evaporation -25℃		Power(W)	3.24	3.93	4.91	5.95	6.74
Storage temperature( ℃)				-20～-15 ℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		1	1	1	2	2
		Voltage of fan (V)		380	380	380	380	380
		Power of fan (W)		330	330	330	230×2	230×2
Port		inhale port/(mm)		φ28	φ28	φ28	Φ35	Φ35
Port		Liquid supply port(mm)		φ12	φ12	φ12	φ16	φ16
Boundary dimensions			L (mm)	990	990	990	1500	1500
			W (mm)	753	753	753	854	903
			H (mm)	857	857	857	867	875
Installation dimension (A×B)(mm)				950×530	950×530	950×530	1460×630	1460×680

Unit design condition: evaporation temperature -23℃, environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added if evaporation temperature is lower than -25℃.

Type				XJB
				14LB	18LB	23LB	28LB	34LB
Compressor type				4NES-14	4HE-18	4GE-23	6HE-28	6GE-34
Cooling capacity and power	Evaporation -20℃		Cooling capacity(W)	16.5	22.1	26.6	34	39.3
	Evaporation -20℃		Power(W)	8.89	11.78	14.32	18.1	21.1
	Evaporation -23℃		Cooling capacity(W)	13.93	18.83	22.8	29	33.6
	Evaporation -23℃		Power(W)	8.17	10.93	13.35	16.84	19.63
	Evaporation -25℃		Cooling capacity(W)	12.8	16.3	18.91	24.4	28.4
	Evaporation -25℃		Power(W)	7.88	10.42	12.49	15.61	18.72
Storage temperature( ℃)				-20～-15 ℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		2	2	2	3	3
		Voltage of fan (V)		380	380	380	380	380
		Power of fan (W)		450×2	600×2	780×2	780×3	780×2
Port		inhale port/(mm)		φ35	Φ42	Φ54	Φ54	Φ54
Port		Liquid supply port(mm)		φ16	Φ22	φ22	φ22	φ22
Boundary dimensions			L (mm)	1500	1606	1880	2070	2270
			W (mm)	953	1003	960	960	960
			H (mm)	867	1004	1770	1770	1860
Installation dimension (A×B)(mm)				1460×730	1566×780	1350×900	1670×900	1740×900

Unit design condition: evaporation temperature -23℃, environment temperature 35℃, inhale overheat 10℃. CIC spray system must be added if evaporation temperature is lower than -25℃

Installation dimensions:

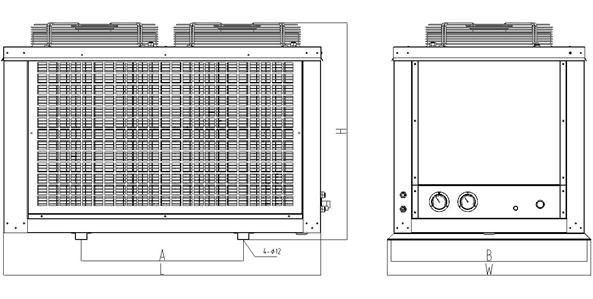

XJB03MB(Y)-XJB07MB(Y), XJB03LB(Y)-XJB06LB(Y):

Bitzer Air-Cooled Low Temperature Condensing Unit (-20~-15℃)

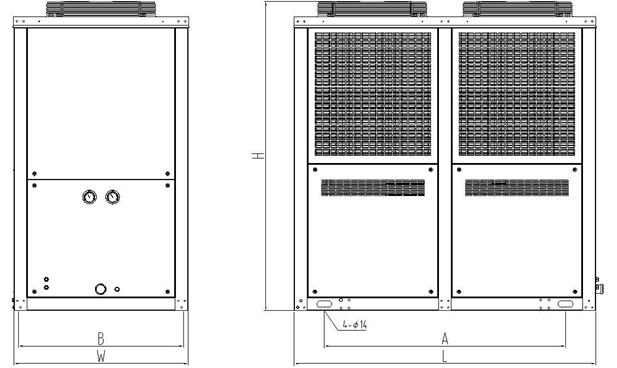

XJB10MB(Y)-XJB50MB(Y)、XJB08LB(Y)-XJB40LB(Y):

Bitzer Air-Cooled Low Temperature Condensing Unit (-20~-15℃)
