GEA Bock Air-Cooled Low Temperature Compressor Unit (-35~-25℃)

GEA Bock Low-Temperature Air-Cooled Compressor Unit has outdone the other condensing units due to its automized compressor. It is relatively easy to use and install. In addition to this, its inhale overheat is of the order 10 ⁰C. Users can easily modify fan speed depending upon the requirements. Furthermore, it guarantees ample cooling potential with storage temperature moving between -35~-25 ⁰C.

We invariably assemble and examine all GEA Bock Low-Temperature Compressor Unit components discreetly to sustain OEM-QUALITY insignia.

Features:

· It comes with semi-hermetic compressor that has its main electrical parts such as control panel and cold room temperature integrated.

· Its compressor is automatic that is it regulates itself.

·  It gives optimal functioning and high efficiency.

· It is equipped with main control panel that turns on and off depending on system presser.

· Several step protections with adjustable fan speed.

· Warning buzzer for any mishaps or malfunctions along with inquiry function.

· Evaporation Temperature: -35

· Environmental Temperature: 35℃

· Power supply: 380V/3P/50Hz

Main Components:

· Compressor

· Crankcase Heater

· Condenser

· Reservoir

· Liquid Accumulator

· Filter

· Anti-vibration pipe

· Terminal Box

· Sight Glass

· Pressure gauge

· Pressure controller

This GEA Bock Low Temperature Air-Cooled Compressor Unit with all measurements and parts is compatible with R404A refrigerant. Please contact us if you need a compressor unit for other refrigerants.

Unit design condition: evaporation temperature -35℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added if evaporation is lower than -25℃

Unit design condition: evaporation temperature -35℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added if evaporation is lower than -25℃

Installation dimensions:

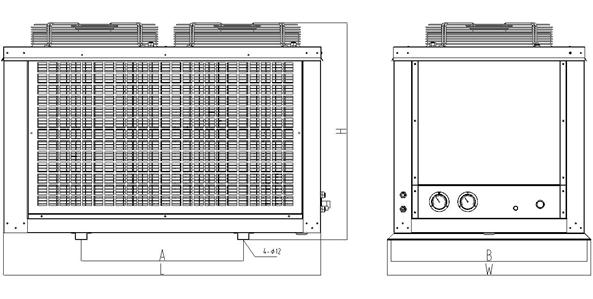

XJB03MB(Y)-XJB07MB(Y), XJB03LB(Y)-XJB06LB(Y):

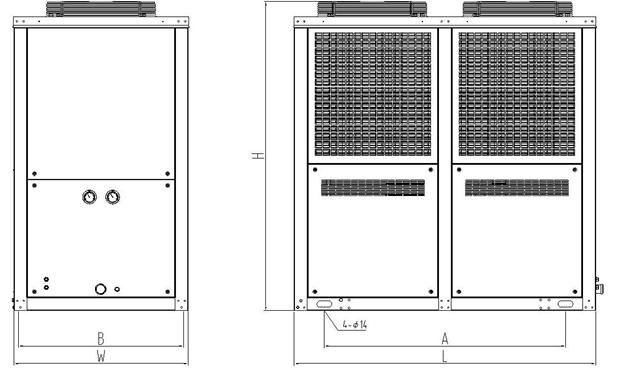

XJB10MB(Y)-XJB50MB(Y), XJB08LB(Y)-XJB40LB(Y):
