Hanbell Low-Temperature Air-Cooled Screw Compressor Unit has attained the analysis of era and operates productively with multi-step control that can be very serviceable in conserving power.
Product Description
Hanbell Low-Temperature Air-Cooled Screw Compressor Unit has attained the analysis of era and operates productively with multi-step control that can be very serviceable in conserving power. It is manifested with an asymmetric rotor that deadens any vibrations or commotions caused by the unit while it is running. In extension to this, it has an edge over many other compressors as it carries a reservoir and pressure sensors with a touchpad control box. Besides, it holds a broad cooling capacity with storage temperature fluctuating between -20~-15 ⁰C.
We invariably assemble and examine all Hanbell Low-Temperature Air-Cooled Screw Compressor Unit components discreetly to sustain OEM-QUALITY insignia.
· It is equipped with a redesigned 5:6 asymmetric rotor semi-hermetic screw compressor which adds to incredible performance.
· It grants endurance with few vibrations and faint noise.
· It entertains multi-level energy regulation therefore energy can be customized according to the change of cooling bulk.
· Customization permits it to efficiently subdue power expense.
· The machine has a multi-protection for compressor coil temperature.
· Runs with an Economizer
· Evaporation temperature: -23℃
· Environmental Temperature: 35℃
· Easy to function.
· Power supply: 380V/3P/50Hz
· Compressor type: Semi-hermetic Screw Compressor
· Screw Compressor
· Feed pipe ball valve
· Oil Controller
· Condenser
· Filter Barrel
· Spray System
· Sight Glass
· Control Box (PLC)
· Pressure gauge
· Pressure controller
· Pressure Sensor
· Inhale filter
This Hanbell Low Temperature Air-Cooled Screw Compressor Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor unit for other refrigerants.
Product Features
| Type | HLGF | |||||||||
| 30L | 40L | 50L | 60L | 70L | 80L | 90L | ||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | RC2-310B | RC2-340B | ||
| Style | Semi-hermetic screw compressor | |||||||||
| Energy adjustment | 66%-100% | 50%-75%-100% | ||||||||
| Cooling capacity and power | Evaporation -20℃ | Cooling capacity(KW) | 38.7 | 54 | 70.6 | 97.9 | 101.3 | 126.2 | 141 | |
| Power(KW) | 24 | 30.7 | 38.5 | 53.5 | 55.1 | 67.6 | 73 | |||
| Evaporation -25℃ | Cooling capacity(KW) | 31.3 | 43.6 | 57.1 | 79.2 | 82 | 102.1 | 114.2 | ||
| Power(KW) | 23.6 | 29.6 | 37.2 | 51.6 | 53.2 | 65.3 | 70.5 | |||
| Evaporation -30℃ | Cooling capacity(KW) | 24.8 | 34.5 | 45.1 | 62.6 | 64.8 | 80.8 | 90.4 | ||
| Power(KW) | 22.4 | 27.8 | 35.8 | 49.8 | 51.3 | 62.9 | 67.9 | |||
| Storage temperature( ℃) | -20～-15℃ | |||||||||
| Refrigerant | R22 | |||||||||
| Power supply | 380V/3P/50Hz | |||||||||
| Max operation current (A) | 69 | 91 | 121 | 158 | 171 | 203 | 220 | |||
| Port | inhale port/(mm) | Φ54 | Φ54 | Φ67 | Φ76 | Φ76 | Φ76 | Φ108 | ||
| Liquid inlet port(mm) | Φ28 | Φ28 | Φ35 | Φ35 | Φ35 | Φ35 | Φ42 | |||
| Exhaust port/(mm) | Φ42 | Φ42 | Φ42 | Φ54 | Φ54 | Φ54 | Φ67 | |||
| Liquid inlet port(mm) | Φ35 | Φ35 | Φ35 | Φ35 | Φ35 | Φ35 | Φ54 | |||
| Boundary dimensions | A (mm) | 1730 | 1730 | 2300 | 2300 | 2300 | 2600 | 2600 | ||
| B (mm) | 700 | 700 | 700 | 770 | 770 | 850 | 850 | |||
| C (mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1400 | 1400 | |||
| Installation dimension (a×b)(mm) | 1000×390 | 1000×390 | 1200×390 | 1200×390 | 1200×390 | 1500×500 | 1500×500 | |||
Unit design condition: evaporation temperature -23℃, environment temperature 35℃, running with economizer.
| Type | HLGF | ||||||||
| 100L | 110L | 125L | 130L | 140L | 150L | ||||
| Compressor type | Type | RC2-370B | RC2-410B | RC2-470B | RC2-510B | RC2-550B | RC2-580B | ||
| Style | Semi-hermetic screw compressor | ||||||||
| Energy adjustment | 50%-75%-100% | ||||||||
| Cooling capacity and power | Evaporation -20℃ | Cooling capacity(KW) | 152.6 | 164.6 | 200.1 | 209 | 234.8 | 250.5 | |
| Power(KW) | 78.9 | 87.2 | 100.8 | 108 | 118.8 | 127.9 | |||
| Evaporation -25℃ | Cooling capacity(KW) | 123.6 | 133.2 | 162.1 | 169.3 | 190.2 | 202.9 | ||
| Power(KW) | 76.1 | 84.2 | 97.2 | 104.3 | 114.7 | 123.4 | |||
| Evaporation -30℃ | Cooling capacity(KW) | 97.9 | 105.4 | 128.5 | 134 | 150.7 | 160.7 | ||
| Power(KW) | 73.4 | 81.2 | 93.8 | 100.5 | 110.6 | 119 | |||
| Storage temperature( ℃) | -20～-15℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3P/50Hz | ||||||||
| Max operation current (A) | 241 | 268 | 310 | 336 | 355 | 377 | |||
| Port | inhale port/(mm) | Φ108 | Φ108 | Φ108 | Φ108 | Φ108 | Φ108 | ||
| Liquid inlet port(mm) | Φ42 | Φ42 | Φ42 | Φ42 | Φ42 | Φ42 | |||
| Exhaust port/(mm) | Φ67 | Φ67 | Φ67 | Φ76 | Φ76 | Φ76 | |||
| Liquid inlet port(mm) | Φ54 | Φ54 | Φ54 | Φ54 | Φ54 | Φ54 | |||
| Boundary dimensions | A (mm) | 2600 | 2750 | 2750 | 3050 | 3050 | 3050 | ||
| B (mm) | 850 | 870 | 870 | 870 | 870 | 870 | |||
| C (mm) | 1400 | 1450 | 1450 | 1450 | 1450 | 1450 | |||
| Installation dimension (a×b)(mm) | 1500×500 | 1500×600 | 1500×600 | 1800×600 | 1800×600 | 1800×600 | |||
Unit design condition: evaporation temperature -23℃, environment temperature 35℃, running with economizer

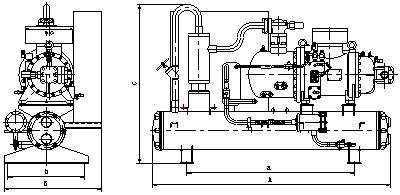

Installation dimensions:
