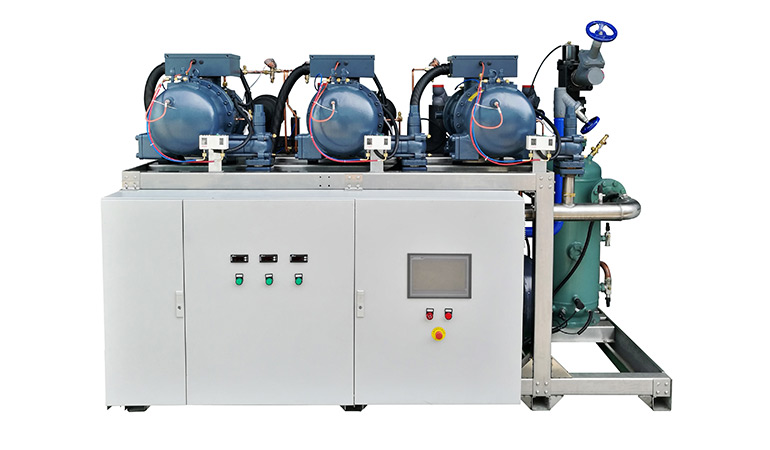

Our Parallel Condensing Screw Compressor Unit has stood the test of time and run effectively with multi-level regulation that can be very useful in saving electricity.
Product Description
Our Parallel Condensing Screw Compressor Unit has stood the test of time and run effectively with multi-level regulation that can be very useful in saving electricity. It is exhibited with an asymmetric rotor that damps any oscillations or noises made by the unit while it is working. In addition to this, it has an advantage over many other compressors as it wears pressure sensors with a touchpad control box. Furthermore, it has a wide cooling capacity with storage temperature ranging between -5~5 ⁰C.
We invariably assemble and examine all Parallel Condensing Screw Compressor Unit components discreetly to sustain OEM-QUALITY insignia.
· It is furnished with renewed 5:6 asymmetric rotor semi-hermetic screw compressor which contributes to unusual efficiency.
· Offers longevity with scanty oscillations.
· It hosts multi-level power adjustment hence power can be customized according to the variation of cooling mass.
· Customization allows it to efficiently overcome electricity expenditure.
· The assembly has multi-protection for compressor coil heat.
· Evaporation temperature: -7℃
· Environmental Temperature: 35℃
· Easy to function.
· Power supply: 380V/3P/50Hz
· Compressor type: Semi-hermetic Screw Compressor
· Screw Compressor
· Oil Separator
· Sub-Oil Outlet Plug
· Oil Restoration Component
· Condenser
· Filter Barrel
· Spray System
· Sight Glass
· Control Box (PLC)
· Pressure gauge
· Pressure controller
· Inhale filter
This Parallel Condensing Screw Compressor Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor unit for other refrigerants.
Product Features
| Type | HLGF2 | ||||||||
| 60M | 80M | 100M | 120M | 140M | |||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | |||
| Style | Semi-hermetic screw compressor | ||||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | ||||
| Singe compressor energy adjustment | 66%-100% | 75%-100% | |||||||
| Cooling capacity and power | Evaporation -0℃ | Cooling capacity(KW) | 149.6 | 209 | 272.8 | 378.6 | 391.4 | ||
| Power(W) | 48 | 66.2 | 82.8 | 115 | 118.6 | ||||
| Evaporation -5℃ | Cooling capacity(KW) | 123 | 171.4 | 223.8 | 310.6 | 321.4 | |||
| Power(KW) | 46.6 | 65.4 | 81.6 | 113.2 | 116.6 | ||||
| Evaporation -10℃ | Cooling capacity(KW) | 100.2 | 139.6 | 182.4 | 253.2 | 262 | |||
| Power(KW) | 44.8 | 64.2 | 80.2 | 111.2 | 114.6 | ||||
| Storage temperature( ℃) | -5～5℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3P/50Hz | ||||||||
| Max operation current (A) | 138 | 182 | 242 | 316 | 342 | ||||
| Port | inhale port/(mm) | Φ89 | Φ108 | Φ108 | Φ133 | Φ133 | |||
| Liquid inlet port(mm) | Φ35 | Φ35 | Φ42 | Φ42 | Φ54 | ||||
| Exhaust port/(mm) | Φ54 | Φ54 | Φ76 | Φ76 | Φ76 | ||||
| Liquid inlet port(mm) | Φ35 | Φ35 | Φ42 | Φ42 | Φ54 | ||||
| Boundary dimensions | A (mm) | 2300 | 2300 | 2300 | 2600 | 2600 | |||
| B (mm) | 1700 | 1700 | 1700 | 1700 | 1700 | ||||
| C (mm) | 1800 | 1800 | 1800 | 1900 | 1900 | ||||
| Installation dimension (a×b)(mm) | 1800×1450 | 1800×1450 | 1800×1450 | 2300×1450 | 2300×1450 | ||||
Unit design condition: evaporation temperature -7℃，environment temperature 35℃.
| Type | HLGF2 | ||||||||
| 160M | 180M | 200M | 220M | 250M | |||||
| Compressor type | Type | RC2-310B | RC2-340B | RC2-370B | RC2-410B | RC2-470B | |||
| Style | Semi-hermetic screw compressor | ||||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | ||||
| Singe compressor energy adjustment | 75%-100% | ||||||||
| Cooling capacity and power | Evaporation -0℃ | Cooling capacity(KW) | 487.4 | 544 | 589 | 635.4 | 771.6 | ||
| Power(KW) | 144.8 | 156 | 168.6 | 187 | 214.8 | ||||
| Evaporation -5℃ | Cooling capacity(KW) | 400.2 | 447.2 | 484 | 522 | 636.2 | |||
| Power(KW) | 142 | 153.4 | 165.6 | 183.8 | 210.4 | ||||
| Evaporation -10℃ | Cooling capacity(KW) | 326.2 | 364.6 | 394.8 | 425.6 | 517.6 | |||
| Power(KW) | 139.4 | 150.4 | 162.6 | 180.4 | 206.8 | ||||
| Storage temperature( ℃) | -5～5℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3P/50Hz | ||||||||
| Max operation current (A) | 406 | 440 | 482 | 536 | 620 | ||||
| Port | inhale port/(mm) | Φ133 | Φ133 | Φ159 | Φ159 | Φ159 | |||
| Liquid inlet port(mm) | Φ54 | Φ54 | Φ54 | Φ54 | Φ54 | ||||
| Exhaust port/(mm) | Φ76 | Φ76 | Φ108 | Φ108 | Φ108 | ||||
| Liquid inlet port(mm) | Φ54 | Φ54 | Φ67 | Φ67 | Φ67 | ||||
| Boundary dimensions | A (mm) | 3000 | 3000 | 3500 | 3500 | 3500 | |||
| B (mm) | 1800 | 1800 | 1900 | 1900 | 1900 | ||||
| C (mm) | 2100 | 2100 | 2100 | 2150 | 2150 | ||||
| Installation dimension (a×b)(mm) | 2000×1550 | 2000×1550 | 2500×1650 | 2500×1650 | 2500×1650 | ||||
Unit design condition: evaporation temperature -7℃，environment temperature 35℃.
| Type | HLGF3 | ||||||||
| 90M | 120M | 150M | 180M | 210M | |||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B-Z | RC2-260B-Z | |||
| Style | Semi-hermetic screw compressor | ||||||||
| Quantity | 3 | 3 | 3 | 3 | 3 | ||||
| Singe compressor energy adjustment | 66%-100% | 75%-100% | |||||||
| Cooling capacity and power | Evaporation -20℃ | Cooling capacity(KW) | 224.4 | 313.5 | 409.2 | 567.9 | 587.1 | ||
| Power(KW) | 72 | 99.3 | 124.2 | 172.5 | 177.9 | ||||
| Evaporation -25℃ | Cooling capacity(KW) | 184.5 | 257.1 | 335.7 | 465.9 | 482.1 | |||
| Power(KW) | 69.9 | 98.1 | 122.4 | 169.8 | 174.9 | ||||
| Evaporation -30℃ | Cooling capacity(KW) | 150.3 | 209.4 | 273.6 | 379.8 | 393 | |||
| Power(KW) | 67.2 | 96.3 | 120.3 | 166.8 | 171.9 | ||||
| Storage temperature( ℃) | -5～5℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3P/50Hz | ||||||||
| Max operation current (A) | 207 | 273 | 363 | 474 | 513 | ||||
| Port | inhale port/(mm) | 2×Φ89 | 2×Φ89 | 2×Φ89 | 2×Φ108 | 2×Φ108 | |||
| Liquid inlet port(mm) | Φ42 | Φ42 | Φ54 | Φ54 | Φ54 | ||||
| Exhaust port/(mm) | Φ54 | Φ76 | Φ76 | Φ76 | Φ108 | ||||
| Liquid inlet port(mm) | Φ42 | Φ42 | Φ54 | Φ67 | Φ67 | ||||
| Boundary dimensions | A (mm) | 3000 | 3000 | 3500 | 3500 | 3500 | |||
| B (mm) | 1700 | 1700 | 1700 | 1700 | 1700 | ||||
| C (mm) | 1800 | 1800 | 1800 | 1900 | 1900 | ||||
| Installation dimension (a×b)(mm) | 2000×1450 | 2000×1450 | 2500×1450 | 2500×1450 | 2500×1450 | ||||
Unit design condition: evaporation temperature -7℃，environment temperature 35℃

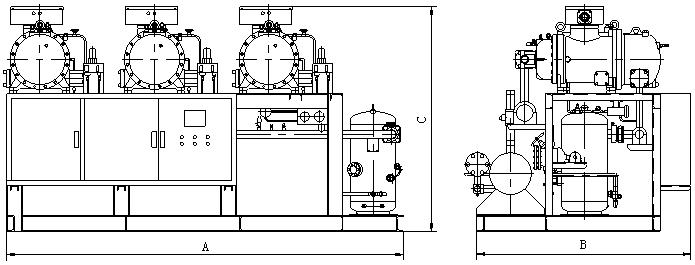

Installation dimensions:
