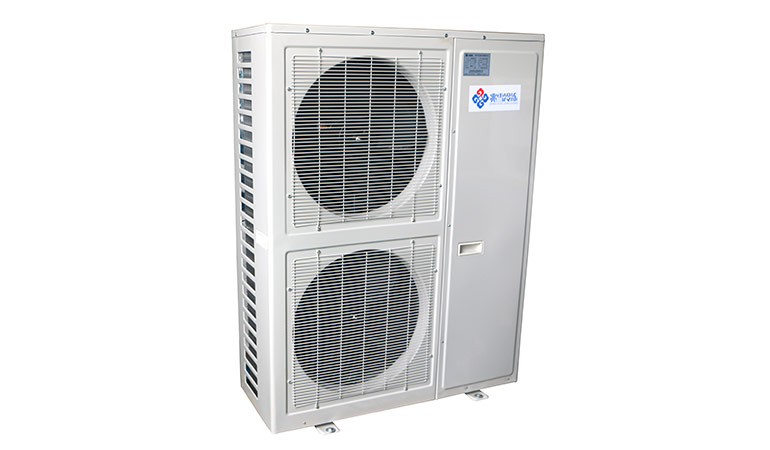

Copeland Air-Cooled Low Temperature Condensing Unit (-5～5 ℃, -20～-10 ℃, -35～-20 ℃)

Copeland Low-Temperature Air-Cooled Compressor Unit operates efficiently with several-step control that can be very practical in saving power. It is exhibited with breakdown alarm and inquiry function permitting users to run a check on its performance. In extension to this, it has an edge over many other compressors as it has adjustable fan speed with inhaling overheat of 10 ⁰C. Furthermore, it guarantees a broad cooling capacity with storage temperature shifting between -5~5 ⁰C.

We regularly model and examine all Copeland Low-Temperature Air-Cooled Compressor Unit components discreetly to sustain OEM-QUALITY insignia.

Features:

· It has blended electrical components such as the main electrical appliance, main control panel, and cold room temperature control panel.

· It is automated with a system presser allows it to turn on and off when the need be

· It manifests switch function for cold room temperature and defrosting.

· It is guarded with multi-level stability for many incidents like phase loss, overcurrent, exhaust temperature, compressor module, pressure adjustments.

· Evaporation temperature: -35℃

· Environmental Temperature: 35℃

· Easy to function and monitor.

· Inhale overheat is 10℃

· Power supply: 380V/3P/50Hz

· Storage Temperature: -5～5 ℃, -20～-10 ℃, -35～-20 ℃

Main Components:

· Compressor

· Condenser

· Reservoir

· Filter

· Magnetic valve

· Air Control valve

· Side Exhaust

· Sight Glass

· Pressure gauge

· Pressure controller

This Copeland Low Temperature Air-Cooled Compressor Unit with all measurements and parts is compatible with R404A refrigerant. Please contact us if you need a compressor unit for other refrigerants.

Unit design condition: evaporation temperature -7℃, environment temperature 35℃, inhaling overheat 10℃

Unit design condition: evaporation temperature -23℃, environment temperature 35℃, inhaling overheat 10℃.

Unit design condition: evaporation temperature -35℃, environment temperature 35℃, inhale overheat 10℃.

Figure of boundary dimensions and installation dimensions:
