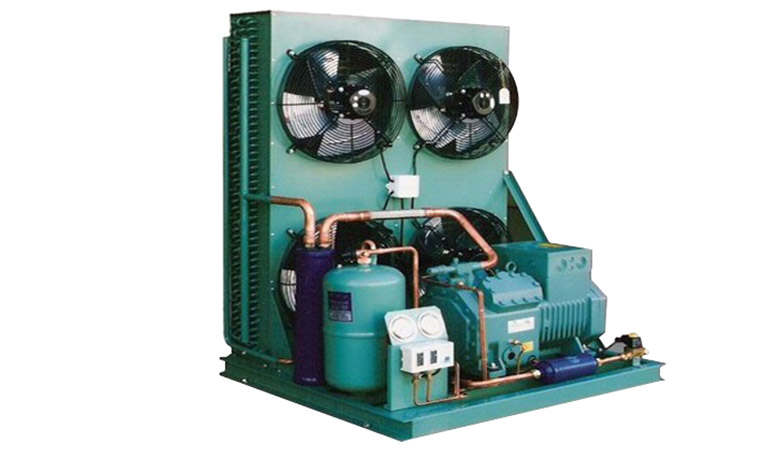

Two Stage Air Cooled Piston Condensing Unit (-40~-25℃)

Manufactured from imported parts, our Two Stage Air Cooled Piston Condensing Unit ensures maximum output and acquires less space to meet the latest standards.

Inquire Now

Product Description

Manufactured from imported parts, our Two Stage Air Cooled Piston Condensing Unit ensures maximum output and acquires less space to meet the latest standards. Having Bitzer's two-stage semi-hermetic compressor, our piston condensing unit is highly reliable and of good quality. With the advanced cooling mechanism, this condensing unit is the only choice of all clients in the world.

We are feeling the pride to design quality accredited piston condensing units with top quality refrigeration parts. And we always manufacture and test parts of all Two Stage Air Cooled Piston Condensing Unit carefully to maintain OEM-QUALITY standards.

Features:

· Comes with Bitzer two stage semi-hermetic compressor.

· Imported parts for reliable operation.

· The condenser in the two stage water cooled piston condensing unit increases the ration of energy efficiency and cooling capacity.

· Less evaporation temperature.

· Evaporation temperature is -50℃ for R22 and -65℃ for R404A.

· World's best quick frozen unit.

· Power supply: 380V/3P/50Hz

· Storage Temperature: -40～-25℃

Main components:

· Two stage compressor

· Crankcase heater

· Damping pipe

· Oil separator

· Air (with water) cooling condenser

· Reservoir (not for water based cooling)

· Filter

· Sight glass

· Magnetic valve

· Subcooler

· Air and liquid separator

· Pressure controller

· Oil pressure regulator and controller

· Temperature setting gauge (low, medium, high temperature)

· Junction box

Moreover, this Two Stage Air Cooled Piston Condensing Unit with all measurements and parts is compatible with R22 refrigerant. If you are looking for condensing unit for other refrigerant, please contact us.

Product Features

Type				SJZBF
				05JB	08JB	12JB	16JB	20JB	25JB	★30JB
Compressor type				S4T5.2	S4N8.2	S4G12.2	S6J16.2	S6H20.2	S6G25.2	S6F30.2
Cooling capacity and power	Evaporation --35℃		Cooling capacity(KW)	5	7.24	10.93	16.32	18.92	21.7	26
	Evaporation --35℃		Power(KW)	3.75	5.6	8.46	11.97	13.87	15.92	19.05
	Evaporation -40℃		Cooling capacity(KW)	3.95	5.68	8.58	12.92	14.98	17.2	20.6
	Evaporation -40℃		Power(KW)	3.41	5.08	7.68	10.58	12.26	14.07	16.84
	Evaporation -45℃		Cooling capacity(KW)	3.02	4.31	6.51	9.81	11.37	13.06	15.62
	Evaporation -45℃		Power(KW)	3.04	4.56	6.89	9.17	10.63	12.2	14.6
Storage temperature( ℃)				-40～-25℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		2	2	4	4	4	4	2
		Voltage of fan (V)		380	380	380	380	380	380	380
		Power of fan (W)		180×2	180×2	180×4	180×4	180×4	180×4	800×2
Port		inhale port/(mm)		φ28	φ28	φ35	φ42	φ42	φ42	φ42
Port		Liquid supply port(mm)		φ16	φ16	φ22	φ22	φ22	φ22	φ22
Boundary dimensions			A (mm)	1085	1270	1270	1270	1340	1340	1250
			B (mm)	930	930	1050	1050	1110	1130	730
			C (mm)	660	810	1210	1460	1410	1410	927
Installation dimension (a×b)(mm)				800×885	800×885	1000×1005	1000×1005	1000×1065	1000×1085	910×685

Note: 1) Environment temperature 35℃, overheat 10℃; 2)Parameter of R404A is TBD; 3) For the units with ★, condenser is separated from unit, dimensions of which are not included in the table.

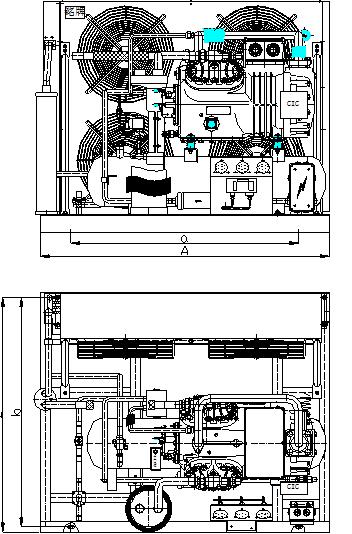

Installation dimensions

Two Stage Air Cooled Piston Condensing Unit (-40~-25℃)
