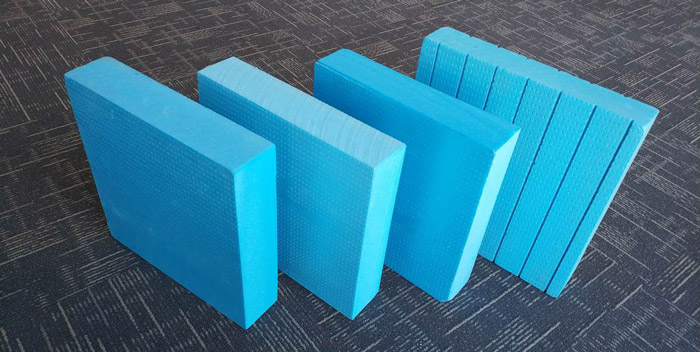

XPS Foam Board

Our XPS Foam Board or Extruded Polystyrene Foam Board is the end product of polystyrene resin, raw materials, polymers, and catalyst which are heated and mixed simultaneously.

Inquire Now Next Product

Product Description

Our XPS Foam Board or Extruded Polystyrene Foam Board is the end product of polystyrene resin, raw materials, polymers, and catalyst which are heated and mixed simultaneously. Then extrusion and molding of this mixture are cooled into a rigid foam plastic board. They exhibit remarkable features such as low water absorption, low thermal conductivity, high compressive resistance, and no aging these attributes make it extremely appealing in the market.

XPS Foam Board

Features:

● No aging

● Light weight

● Closed cell honey comb structure

● Fireproof

● Low linearity and expansion ratio

● Heat preservation

● Portable

● Non-toxic

● Environmentally friendly

● High efficiency

● Great material strength

● Waterproof

● Stable

● Safe and reliable

● Remarkable thermal insulation quality

● Longevity

● Non-corrosive

Specifications:

Material	Polystyrene
Thickness	5-150mm (normal 50mm)
Density	25-45kg/m3
Thermal Conductivity	0.028~0.03W/mK
Width	Normal 600mm
Length	Customized
Color	Blue, Green, White, Yellow, Pink
Compressive Strength	300-700Kpa
Tensile strength	>=250Kpa
Water absorption	<=1.00% Vol-%
Temperature limits	-50° C, + 75° C

Applicable Temperature: It depends on the panel thickness for 5mm it is 30℃ that is for every 25mm increase in thickness temperature difference rises up to 10 ℃.

Applications:

● Geothermal Engineering

● Highways

● Airport runway

● Square ground

● Large Cold storage

● Car Interior decoration

● Thermal Insulation

Note:

The thickness and width of core material can be customized according to customer requirements.
