Food Cold Storage Room Project, Food Cold Store Project

How are food cold storage constructions usually designed and planned?

The large food cold storages are made up of two major parts, the main building and the auxiliary buildings, which are divided into the cold deformation room, cold storage room, production auxiliary room, living auxiliary room and production connecting room according to different and specific food handling and storage conditions.

The cold deformation room and cold storage room need to follow the design of the food production process flow and strive to achieve a transport route that is short and convenient and avoids roundabouts and intersections. The cold deformation room and cold storage room are designed based on the requirements of different food handling and storage conditions, which mainly include the cooling room, freezing room, refrigerated goods storage room, frozen goods storage room, icehouse, etc., and are equipped with different refrigeration equipment, etc.

Features of Kendall's Food Cold Storage Project

1. Energy-saving thermal insulation and superior cold storage insulation performance allow fast cooling speeds, maintain temperature for a longer time and saves about 30%-40% energy compared to cold storages built with other materials.

2. Series compatibility. Warehouse plates of the food cold storage are produced according to the customer's requirements. Through a combination of different sizes, cold storages with different specifications are provided for selection, giving users the benefit of making full use of the existing site and building space.

3. There are two types of products – indoor and outdoor, and we can design single room, double rooms, vestibules and multiple rooms. You can also choose between air coolers or calandria evaporators. Air-cooled refrigeration units may be installed in water scarce areas. If you don't know what temperature is needed for food stored in your cold storage, you can inquire with us directly.

Benefits of Partnering with Kendall

Expertise and Experience: With years of experience in the cold storage industry, our team of experts provides unparalleled knowledge and support.

Tailored Solutions: We work closely with our clients to design and implement storage solutions that precisely match their needs.

Reliability: Our facilities are built to ensure continuous operation, with backup systems in place to handle any emergencies.

Innovation: We constantly integrate the latest technologies to enhance efficiency, sustainability, and ease of use.

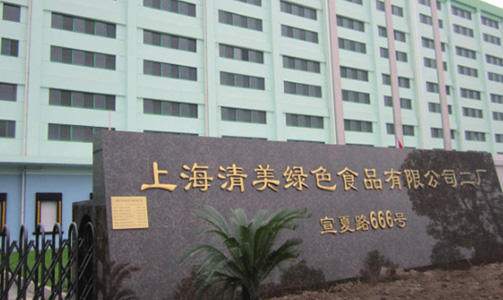

Shanghai Tramy Large Food Cold Storage Project

Cold Storage Size: 20,000 square meters

Unit Selection: Fusheng brand screw compressor, Bitzer piston compressor

Introduction to the Cold Storage Project: Shanghai Kendall Refrigeration Engineering Co., Ltd. was invited by the project owner, Shanghai Tramy Co., to participate in the bidding and it eventually won the bid. After receiving the invitation to bid, Kendall Refrigeration organized relevant experts to research and discuss the cold storage design and equipment selection based on features and requirements of the cold storage project. They decided that several sets of Taiwan's Fusheng brand screw compressor and Bitzer piston compressor, several sets of evaporative condensers and several sets of ceiling-mounted coolers (double outlet) shall be used for the refrigeration unit while 100MM thick polyurethane double-sided color steel insulation boards shall be used for the cold storage plates. For the cold storage doors, manual single-gate sliding doors or electric single-gate sliding doors shall be used according to different requirements. After starting the project, the construction staff of Kendall Refrigeration worked meticulously and efficiently and project management staff was stationed at the warehouse to supervise work 24 hours a day. With the cooperation and strong support of Tramy Co., the cold storage project was completed on schedule and the project quality was highly regarded by Tramy Co.

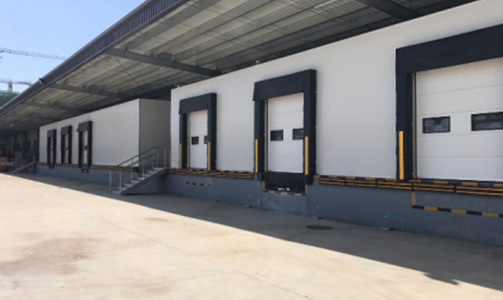

Shanghai Tramy Large Food Cold Storage Project

Jiangsu Changzhou Ruziniu Co. Large Cold Storage Project

Cold Storage Size: 4,000 square meters

Unit Selection: Kendall full-liquid compressor

Introduction to the Cold Storage Project: The Ruziniu cold storage occupies an area of nearly 4,000 square meters and has a net height of 10 meters. It mainly stores red dates, walnuts, mung beans, red beans, raisins and other products. The cold storage uses 150mm polyurethane double-sided color steel plates (including flame retardants), which have excellent thermal insulation and fire resistance, domestic electric sliding doors, which are affordable and durable, 1 set of FN2500 air curtain, 1 set of KCE-340 full liquid compressor unit, 1 unit of SWL-1165 evaporative condenser, which altogether guarantee a strong cooling effect.

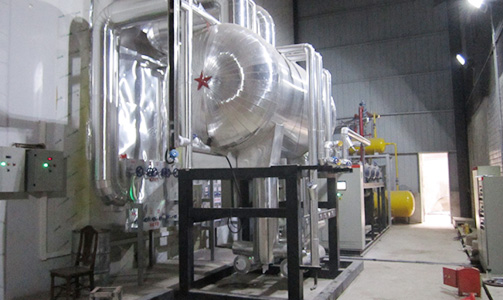

Jiangsu Changzhou Ruziniu Co. Large Cold Storage Project

Chengdu Jingrui Large Food Processing Cold Storage Project

Cold Storage Size: 6,500 square meters

Unit Selection: Three compressors: Bitzer, Taiwan Fusheng, and U.S. Copeland

Introduction to the Cold Storage Project: The large food processing cold storage with an area of about 6,500 square meters of Chengdu Jingrui was constructed by Kendall Refrigeration. This was a large project containing more than ten freezer storages, which included a raw material storage, finished goods storage, egg storage, freezer storage, quick-freezing storage, thawing room and packaging and processing area. The temperature could go as low as -35℃.

Advantages of the Cold Storage: The entire cold storage adopts the fluorine-refrigeration direct-expansion liquid supply method. The refrigeration system uses three compressors, namely Germany’s Bitzer, Taiwan’s Fusheng and U.S.’ Copeland. The cold storage also has comprehensive equipment operation monitoring and temperature monitoring, which scientificize the cold storage supply chain management resulting to safer food products.

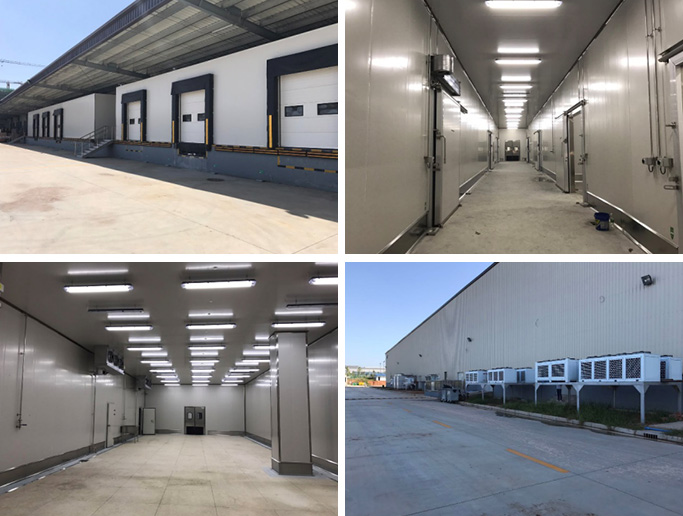

Chengdu Jingrui Large Food Processing Cold Storage Project
