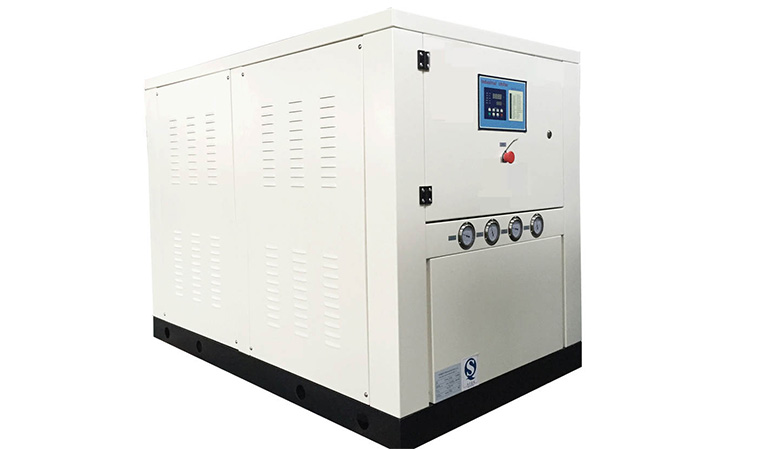

This Box Type Water-Cooled Chiller has remarkable features that any ideal water-cooled chiller must bear. It has an edge over many other chillers due to its economical consumption of electricity.
Product Description
This Box Type Water-Cooled Chiller has remarkable features that any ideal water-cooled chiller must bear. It has an edge over many other chillers due to its economical consumption of electricity. As the name says water-cooled, the condenser has waterside for extra cooling. It also has high and low voltage protection, over current protection, and electronic time-delay protection. It displays an outstanding example of efficiency side by side less space occupation.
Key Features:
● Premium quality compressor rack.
● Hermetic Scroll compressor.
● Tubular DX heat exchanger.
● Axial fan flow.
● Efficient heat exchange.
● Stable operation.
● Less noise.
● Enhanced performance
● Industrial appearance.
● Wide temperature spectrum.
● Ultimate power saver
● Easy to use.
● Compact design and dimensions.
● Power supply: 380V/3PH/50Hz
Applications:
Our Box Type Water-Cooled Chiller has vast range of applications in several sectors it covers wide range of activities from food to plastics it ensures that your requirements are met by it.
● Pharmaceuticals
● Laboratories
● Moldings
● Cold Storage
● Concrete Cooling
● Portable Water
● Chemical Industries
● Poultry and food processing
● Beverage industry
7⁰C Box Type Water-Cooled Chiller
This Box Type Water-Cooled Chiller has the following features
● Water inlet/outlet Temperature: 12℃/7℃
● Ambient Temperature: 35℃
● Temperature Condition: 5℃~25℃
● Pressure Tolerance: 1.0 MPa
● Fouling coefficient: 0.044m2⁰C/kW
● Refrigerant: R22
-5⁰C Box Type Water-Cooled Chiller
This Box Type Water-Cooled Chiller has the following features
● Water inlet/outlet Temperature: 7℃/-5℃
● Ambient Temperature: 35℃
● Temperature Condition: 5℃~25℃
● Pressure Tolerance: 1.0 MPa
● Fouling coefficient: 0.044m2℃/kW
● Refrigerant: R22
-15⁰C Box Type Water-Cooled Chiller
This Box Type Water-Cooled Chiller has the following features
● Water inlet/outlet Temperature: -10℃/-15℃
● Ambient Temperature: 35⁰C
● Temperature Condition: -17℃~0℃
● Pressure Tolerance: 1.0 MPa
● Fouling coefficient: 0.044m2℃/kW
● Refrigerant: R404a
We invariably assemble and examine all Box Type Water-Cooled Chiller components discreetly to sustain premium quality insignia.
Main Components:
● Compressor
● Condenser
● Reservoir
● Chilled Water inlet/outlet pipe.
● Terminal Box
● Sight Glass
● Pressure gauge
● Pressure controller
● Safety Devices
Note:
In addition to the above-mentioned specifications and requirements, our company is capable of providing customized products in order to satisfy customer needs.
Product Features
7⁰C Box Type Water-Cooled Chiller
| Box Type Water-cooled Chiller ( 7℃ ) | ||||||||||||||
| Model | ZWAG | 3W | 5W | 8W | 10W | 12W | 15W | 2-20W | 2-25W | 2-30W | 2-40W | 2-50W | 4-60W | |
| Cooling Capacity | kW | 7.9 | 13.8 | 22.0 | 29.2 | 33.7 | 43.2 | 58.4 | 67.4 | 86.4 | 111.4 | 139.0 | 171.2 | |
| 104kcal/h | 0.7 | 1.2 | 1.9 | 2.5 | 2.9 | 3.7 | 5.0 | 5.8 | 7.4 | 9.6 | 12.0 | 14.7 | ||
| RT | 2.2 | 3.9 | 6.3 | 8.3 | 9.6 | 12.3 | 16.6 | 19.2 | 24.6 | 31.7 | 39.5 | 48.7 | ||
| Power Input | kW | 2.1 | 3.5 | 5.3 | 6.7 | 7.8 | 10.4 | 13.4 | 15.0 | 20.8 | 26.6 | 31.9 | 40.7 | |
| Current Input | A | 4.2 | 7.7 | 10.7 | 13.3 | 14.8 | 22.0 | 26.7 | 28.4 | 44.0 | 48.7 | 62.1 | 75.7 | |
| Power Supply | 380V-3PH-50Hz | |||||||||||||
| Safety Devices | High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection | |||||||||||||
| Compressor | Model Type | Hermetic Scroll Compressor | ||||||||||||
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 4 | ||
| Power Input | kW | 1.68 | 2.98 | 4.53 | 5.94 | 6.74 | 9.29 | 11.88 | 13.48 | 18.58 | 24.40 | 29.70 | 36.70 | |
| Rated Current | A | 3.50 | 6.64 | 9.30 | 11.94 | 12.81 | 19.97 | 23.88 | 25.62 | 39.94 | 44.58 | 58.04 | 68.34 | |
| Chilled Water | Form | High efficiency tubular DX or plate heat exchanger | ||||||||||||
| Pipe diameter | DN | 25 | 25 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 65 | 65 | 80 | |
| Water flow | L/min | 22.6 | 39.6 | 63.1 | 83.7 | 96.6 | 123.8 | 167.4 | 193.2 | 247.7 | 319.3 | 398.5 | 490.8 | |
| Cooling water | Form | High efficiency shell tube or plate heat exchanger | ||||||||||||
| Pipe diameter | DN | 25 | 25 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 65 | 65 | 80 | |
| Water flow | L/min | 28 | 49 | 79 | 105 | 121 | 155 | 209 | 242 | 310 | 399 | 498 | 613 | |
| Chilled Water Pump | Form | High efficiency and low noise centrifugal pump | ||||||||||||
| Power Input | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.10 | 1.10 | 1.50 | 1.50 | 2.20 | 2.20 | 2.20 | 4.00 | |
| Lift | m | 15 | 20 | 19 | 19 | 17 | 25 | 24 | 22 | 22 | 20 | 20 | 22 | |
| Refrigerant | Model | R22 | ||||||||||||
| Water Tank Volume | L | 80 | 90 | 190 | 190 | 190 | 210 | 250 | 250 | 320 | 400 | 400 | 550 | |
| Size | Length | mm | 1050 | 1050 | 1420 | 1450 | 1520 | 1750 | 1850 | 1950 | 2150 | 2350 | 2550 | 2800 |
| Width | mm | 740 | 740 | 860 | 860 | 860 | 950 | 950 | 950 | 1100 | 1100 | 1100 | 1200 | |
| Height | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1190 | 1190 | 1190 | 1390 | 1440 | 1500 | 1550 | |
| Weight | Kg | 220 | 236 | 320 | 372 | 435 | 610 | 750 | 850 | 950 | 1050 | 1150 | 1300 | |
Remark:
1. Designed condition: Chilled water inlet/outlet temp. 12 ℃/ 7 ℃; Cooling water inlet/outlet temp. 30 ℃/ 35 ℃.
2. Temperature conditions: Chilled water outlet temp. range of 5 ℃ ~ 25 ℃.
3. The water side of the evaporator and condenser is designed to withstand pressure of 1.0MPa.
4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW, the fouling coefficient of condenser water side is 0.044m2·℃/kW.
5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.
-5⁰C Box Type Water-Cooled Chiller
| Box Type Water-cooled Chiller ( -5℃ ) | ||||||||||||||
| Model | ZWAD | 3W | 5W | 8W | 10W | 12W | 15W | 2-20W | 2-25W | 2-30W | 2-40W | 2-50W | 4-60W | |
| Cooling Capacity | kW | 4.9 | 8.4 | 13.7 | 18.6 | 21.4 | 27.1 | 37.2 | 42.8 | 54.2 | 71.4 | 87.2 | 111.0 | |
| 104kcal/h | 0.4 | 0.7 | 1.2 | 1.6 | 1.8 | 2.3 | 3.2 | 3.7 | 4.7 | 6.1 | 7.5 | 9.5 | ||
| RT | 1.4 | 2.4 | 3.9 | 5.3 | 6.1 | 7.7 | 10.6 | 12.2 | 15.4 | 20.3 | 24.8 | 31.6 | ||
| Power Input | kW | 2.1 | 3.2 | 5.0 | 6.5 | 7.3 | 9.7 | 12.6 | 14.1 | 19.4 | 25.1 | 30.4 | 37.4 | |
| Current Input | A | 4.2 | 7.2 | 10.2 | 13.1 | 13.9 | 21.0 | 25.5 | 27.1 | 42.1 | 46.4 | 59.6 | 70.1 | |
| Power Supply | 380V-3PH-50Hz | |||||||||||||
| Safety Devices | High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection | |||||||||||||
| Compressor | Model Type | Hermetic Scroll Compressor | ||||||||||||
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 4 | ||
| Power Input | kW | 1.73 | 2.86 | 4.46 | 5.75 | 6.52 | 8.97 | 11.50 | 13.04 | 17.94 | 23.60 | 28.90 | 35.20 | |
| Rated Current | A | 3.55 | 6.50 | 9.19 | 11.72 | 12.51 | 19.64 | 23.44 | 25.02 | 39.28 | 43.64 | 56.86 | 66.06 | |
| Chilled Water | Form | High efficiency tubular DX heat exchanger | ||||||||||||
| Pipe diameter | DN | 20 | 20 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | |
| Water flow | L/min | 14.0 | 24.1 | 39.3 | 53.3 | 61.3 | 77.7 | 106.6 | 122.7 | 155.4 | 204.7 | 250.0 | 318.2 | |
| Cooling water | Form | High efficiency shell tube or plate heat exchanger | ||||||||||||
| Pipe diameter | DN | 20 | 20 | 25 | 32 | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | |
| Water flow | L/min | 19 | 30 | 49 | 67 | 77 | 97 | 133 | 153 | 194 | 256 | 312 | 398 | |
| Chilled Water Pump | Form | High efficiency and low noise centrifugal pump | ||||||||||||
| Power Input | kW | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.10 | 1.10 | 1.50 | 1.50 | 1.50 | 2.20 | |
| Lift | m | 15 | 20 | 19 | 19 | 17 | 25 | 24 | 22 | 22 | 20 | 20 | 22 | |
| Refrigerant | Model | R22 | ||||||||||||
| Water Tank Volume | L | 80 | 90 | 190 | 190 | 190 | 210 | 250 | 250 | 320 | 400 | 400 | 550 | |
| Size | Length | mm | 1050 | 1050 | 1420 | 1450 | 1520 | 1750 | 1850 | 1950 | 2150 | 2350 | 2550 | 2800 |
| Width | mm | 740 | 740 | 860 | 860 | 860 | 950 | 950 | 950 | 1100 | 1100 | 1100 | 1200 | |
| Height | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1190 | 1190 | 1190 | 1390 | 1440 | 1500 | 1550 | |
| Weight | Kg | 220 | 236 | 320 | 372 | 435 | 610 | 750 | 850 | 950 | 1050 | 1150 | 1300 | |
Remark:
1. Designed condition: Chilled water inlet/outlet temp. 0 ℃/ -5 ℃; Cooling water inlet/outlet temp. 30 ℃/ 35 ℃; it is recommended to use 25% ethylene glycol solution.
2. Temperature conditions: Chilled water outlet temp. range of -8 ℃ ~ 10 ℃.
3. The water side of the evaporator and condenser is designed to withstand pressure of 1.0MPa.
4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW, the fouling coefficient of condenser water side is 0.044m2·℃/kW.
5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.
-15⁰C Box Type Water-Cooled Chiller
| Box Type Water-cooled Chiller ( -15℃ ) | |||||||||||
| Model | ZWAD | 3W | 5W | 8W | 10W | 13W | 15W | 2-20W | 2-25W | 2-30W | |
| Cooling Capacity | kW | 3.8 | 6.6 | 9.9 | 13.4 | 16.4 | 19.3 | 26.8 | 32.8 | 38.6 | |
| 104kcal/h | 0.3 | 0.6 | 0.9 | 1.2 | 1.4 | 1.7 | 2.3 | 2.8 | 3.3 | ||
| RT | 1.1 | 1.9 | 2.8 | 3.8 | 4.7 | 5.5 | 7.6 | 9.3 | 11.0 | ||
| Power Input | kW | 2.4 | 3.8 | 5.5 | 7.2 | 9.1 | 11.0 | 14.0 | 18.2 | 21.6 | |
| Current Input | A | 4.7 | 6.7 | 11.5 | 14.2 | 17.5 | 22.8 | 27.8 | 34.9 | 44.8 | |
| Power Supply | 380V-3PH-50Hz | ||||||||||
| Safety Devices | High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection | ||||||||||
| Compressor | Model Type | Hermetic Scroll Compressor | |||||||||
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||
| Power Input | kW | 2.03 | 3.41 | 5.12 | 6.62 | 8.55 | 10.25 | 13.24 | 17.10 | 20.50 | |
| Rated Current | A | 3.98 | 5.97 | 10.77 | 13.23 | 16.45 | 21.38 | 26.46 | 32.90 | 42.76 | |
| Chilled Water | Form | High efficiency tubular DX heat exchanger | |||||||||
| Pipe diameter | DN | 20 | 20 | 20 | 25 | 25 | 32 | 32 | 40 | 40 | |
| Water flow | L/min | 10.9 | 18.9 | 28.4 | 38.4 | 47.0 | 55.3 | 76.8 | 94.0 | 110.7 | |
| Cooling water | Form | High efficiency tubular or plate heat exchanger | |||||||||
| Pipe diameter | DN | 20 | 20 | 20 | 25 | 25 | 32 | 32 | 40 | 40 | |
| Water flow | L/min | 18 | 31 | 47 | 64 | 78 | 92 | 128 | 156 | 184 | |
| Chilled Water Pump | Form | High efficiency and low noise centrifugal pump | |||||||||
| Power Input | kW | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 1.10 | 1.10 | |
| Lift | m | 15 | 20 | 19 | 19 | 17 | 25 | 24 | 22 | 22 | |
| Refrigerant | Model | R404a | |||||||||
| Water Tank Volume | L | 80 | 90 | 190 | 190 | 190 | 210 | 250 | 250 | 320 | |
| Size | Length | mm | 1050 | 1050 | 1420 | 1450 | 1520 | 1750 | 1850 | 1950 | 2150 |
| Width | mm | 740 | 740 | 860 | 860 | 860 | 950 | 950 | 950 | 1100 | |
| Height | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1190 | 1190 | 1190 | 1390 | |
| Weight | Kg | 220 | 236 | 320 | 372 | 435 | 610 | 750 | 850 | 950 | |
Remark:
1. Designed condition: Chilled water inlet/outlet temp. -10 ℃/ -15 ℃; Cooling water inlet/outlet temp. 30 ℃/ 35 ℃; it is recommended to use 40% ethylene glycol solution.
2. Temperature conditions: Chilled water outlet temp. range of -17 ℃ ~ 0 ℃.
3. The water side of the evaporator and condenser is designed to withstand pressure of 1.0MPa.
4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW, the fouling coefficient of condenser water side is 0.044m2·℃/kW.
5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.
