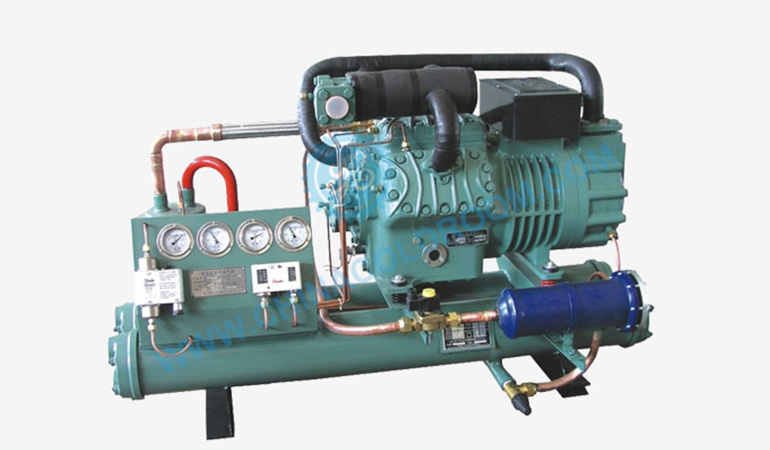

Designed to meet the latest cooling requirements, this GEA BOCK Low-Temperature Water Cooled Condensing Unit has a semi-hermetic piston compressor for high efficiency and stable operation.
Product Description
Designed to meet the latest cooling requirements, this GEA BOCK Low-Temperature Water Cooled Condensing Unit has a semi-hermetic piston compressor for high efficiency and stable operation. And the air-cooled unit of our condensing unit has an outside rotor condenser which maintains good appearance and less noise. The water-cooled condenser (aluminum fin and copper tube) and premium quality air-cooled condenser (shell-type) ensures long life and over-heat protection. Moreover, waterproof junctions of the GEA BOCK Low-Temperature Water Cooled Condensing Unit are quite easy to connect with all control components to save time.
We always provide series of products for the solution of cold storage, water-chilling and ice-making with the best quality to maintain OEM-QUALITY standards.
Key features
· Power supply :380V/3P/50HZ
· Storage temperature: -35～-25 ℃
· Refrigerant: R22
· Air cooling condenser made up of aluminum fin and copper tube
· Water cooling condenser
· Semi hermetic compressor
· High efficiency
· Easy to connect water proof junctions
· Low noise
· Less power consumption
· Stable operation
· Evaporation temperature -35℃,
· Water cooling inlet temperature 30℃
· Water cooling outlet temperature 35℃
· Inhale overheat 10℃
Main components
· Water cooling condenser
· Compressor
· Damping pipe
· Crankcase heater
· Junction box
· Filter
· Pressure controller
· Pressure gauge
Customized options:
We are currently offering the following customizations;
· Single compressor unit
· Two parallel compressor unit
· Three parallel compressor unit
This water-cooled GEA BOCK Low Temperature Water Cooled Condensing Unit with all the parts and measurements is compatible with R22 refrigerant. Please contact us if you need a condensing units for other refrigerants.
Product Features
| Type | JZBS | |||||||||
| 03LK | 03LK | 04LK | 05LK | 06LK | 09LK | |||||
| Compressor type | HGX22e/190-4 | HGX34e/215-4 | HGX34e/255-4 | HGX34e/315-4 | HGX34e/380-4 | HGX44e/475-4 | ||||
| Cooling capacity and power | Evaporation --25℃ | Cooling capacity(W) | 2420 | 3950 | 5000 | 6410 | 7900 | 10600 | ||
| Power(W) | 2320 | 2740 | 3410 | 4230 | 5280 | 6450 | ||||
| Evaporation -30℃ | Cooling capacity(W) | 2030 | 2820 | 3670 | 4750 | 5970 | 7990 | |||
| Power(W) | 4160 | 2280 | 2870 | 3580 | 4480 | 5560 | ||||
| Evaporation -35℃ | Cooling capacity(W) | 2800 | 1920 | 2590 | 3360 | 4360 | 5830 | |||
| Power(W) | 3160 | 1840 | 2350 | 2930 | 3690 | 4690 | ||||
| Storage temperature( ℃) | -35～-25 ℃ | |||||||||
| Refrigerant | R22 | |||||||||
| Power supply | 380V/3P/50Hz | |||||||||
| Nominal cooling water flow (m3/h) | 1.5 | 1.6 | 2 | 2.5 | 3 | 4 | ||||
| Port | inhale port/(mm) | φ22 | φ22 | φ28 | φ28 | φ28 | φ35 | |||
| Liquid supply port(mm) | φ12 | φ12 | φ12 | φ12 | φ12 | φ16 | ||||
| Cooling water port(mm) | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" | ||||
| Boundary dimensions | A (mm) | 745 | 745 | 745 | 935 | 935 | 1138 | |||
| B (mm) | 350 | 290 | 290 | 370 | 370 | 380 | ||||
| C (mm) | 555 | 610 | 610 | 670 | 670 | 715 | ||||
| Installation dimension (a×b)(mm) | 510×290 | 510×290 | 510×290 | 600×320 | 600×320 | 710×320 | ||||
Unit design condition: evaporation temperature -35℃, cooling water inlet temperature 30℃, cooling water outlet temperature 35℃, inhale overheat 10℃
| Type | JZBS | ||||||||||
| 12LK | 14LK | 18LK | 23LK | 28LK | 34LK | 44LK | |||||
| Compressor type | HGX44e/565-4 | HGX44e/665-4 | HGX5/830-4 | HGX5/945-4 | HGX6/1080-4 | HGX6/1240-4 | HGX6/1410-4 | ||||
| Cooling capacity and power | Evaporation --25℃ | Cooling capacity(W) | 12800 | 14500 | 16400 | 20100 | 23000 | 26700 | 30800 | ||
| Power(W) | 7680 | 9030 | 11200 | 13500 | 15400 | 17800 | 21100 | ||||
| Evaporation -30℃ | Cooling capacity(W) | 9820 | 11000 | 12200 | 15300 | 17300 | 20400 | 23700 | |||
| Power(W) | 6610 | 7780 | 9430 | 11500 | 13000 | 15100 | 17800 | ||||
| Evaporation -35℃ | Cooling capacity(W) | 7250 | 7990 | 8530 | 11100 | 12600 | 15100 | 17700 | |||
| Power(W) | 5560 | 6560 | 7560 | 9430 | 10600 | 12500 | 14700 | ||||
| Storage temperature( ℃) | -35～-25 ℃ | ||||||||||
| Refrigerant | R22 | ||||||||||
| Power supply | 380V/3P/50Hz | ||||||||||
| Nominal cooling water flow (m3/h) | 4 | 5 | 7 | 8 | 10 | 12 | 15 | ||||
| Port | inhale port/(mm) | φ35 | φ35 | φ42 | φ54 | φ54 | φ54 | φ54 | |||
| Liquid supply port(mm) | φ16 | φ16 | φ22 | φ22 | φ22 | φ22 | φ28 | ||||
| Cooling water port(mm) | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | ||||
| Boundary dimensions | A (mm) | 1255 | 1255 | 1295 | 1295 | 1295 | 1295 | 1650 | |||
| B (mm) | 415 | 415 | 585 | 565 | 595 | 595 | 600 | ||||
| C (mm) | 715 | 715 | 835 | 840 | 830 | 830 | 830 | ||||
| Installation dimension (a×b)(mm) | 800×320 | 800×320 | 850×390 | 850×390 | 850×390 | 850×390 | 1200×390 | ||||
Unit design condition: evaporation temperature -35℃, cooling water inlet temperature 30℃, cooling water outlet temperature 35℃. Cylinder head fan and CIC spray system must be added if evaporation temperature is lower than -25℃.

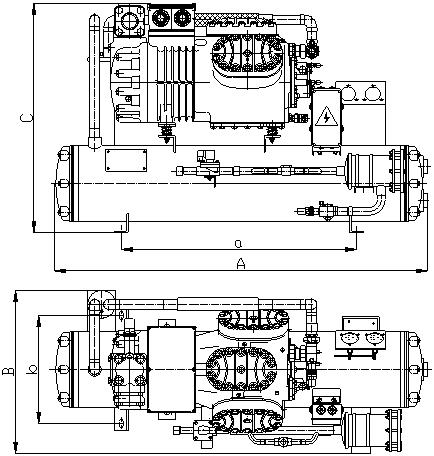

Figures of water cooling units:
