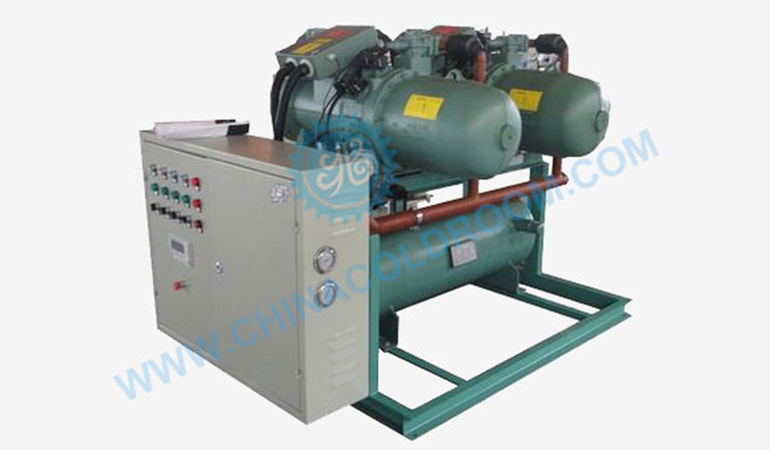

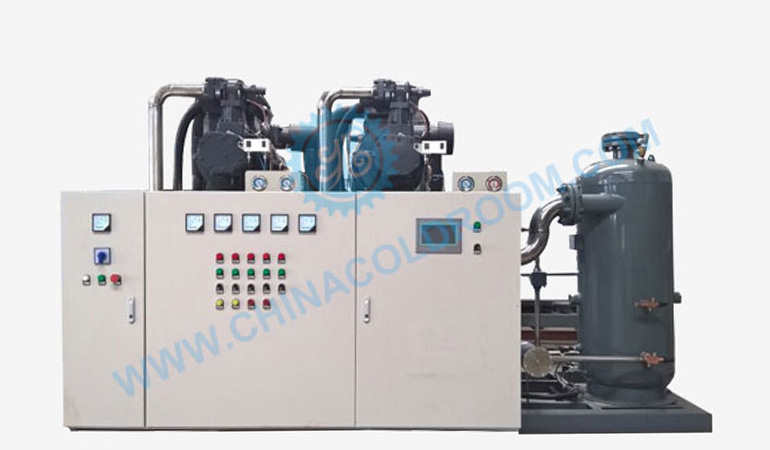

As a leading brand for both water cooled and air cooled condensing units, we are here with the low noise, less vibrating, and long life Semi-Hermetic Low Temperature Storage Screw Condensing Unit.
Product Description
As a leading brand for both water cooled and air cooled condensing units, we are here with the low noise, less vibrating, and long life Semi-Hermetic Low Temperature Storage Screw Condensing Unit. Except for imported parts, it features asymmetric 5:6 rotor screw compressor for high efficiency and maximum output. Moreover, this screw condensing unit ensures less energy consumption as it comes with the multi-level energy control mechanism. So, you can easily control the cooling load according to the requirements. With -20～-15℃ temperature settings, this Semi-Hermetic Low Temperature Storage Screw Condensing Unit meets your wide-scale refrigeration needs.
We always manufacture and test parts of all Semi-Hermetic Low Temperature Storage Screw Condensing Unit carefully to maintain OEM-QUALITY standards.
Features:
· The compressor has less noise, less vibration, long life and matchless efficiency.
· Completely configured unit with world's highly reliable refrigeration accessories and parts.
· Over load, over heat, counter rotation, exhaust temperature, oil flow, oil level, and pressures level protection.
· Special protection for coil temperature
· Adjustable multiple energy regulation levels for different cooling load.
· Less energy consumption.
Main components:
· Screw compressor
· Oil separator
· Oil cooler (for air based cooling units)
· Oil returning component
· Outlet valve for sub oil
· Condenser (for water based cooling units)
· Reservoir
· Filter barrel
· Sight glass
· Spray system
· Inhale filter
· Economizer system
· Pressure protector
· Pressure gauge
· Pressure control for high, medium, and low levels
· Condenser fan
· Pressure sensor
· Control box with PCL+ and touch pad
· Storage temperature: -20～-15℃
· Power supply: 380V/3P/50Hz
· Evaporation temperature -23℃
· Water cooling inlet 30℃
· Outlet temperature: 35℃
· Runs with economizer
Moreover, this Semi-Hermetic Low Temperature Storage Screw Condensing Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a condensing unit for other refrigerants.
Product Features
| Type | HLGS | ||||||||||
| 30L | 40L | 50L | 60L | 70L | 80L | 90L | |||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | RC2-310B | RC2-340B | |||
| Style | Semi-hermetic screw compressor | ||||||||||
| Energy adjustment | 66%-100% | 50%-75%-100% | |||||||||
| Cooling capacity and power | Evaporation -20℃ | Cooling capacity(KW) | 41 | 57.1 | 74.6 | 103.5 | 107 | 133.8 | 149.4 | ||
| Power(KW) | 20.5 | 27.6 | 34.7 | 48.2 | 49.7 | 60.9 | 65.8 | ||||
| Evaporation -25℃ | Cooling capacity(KW) | 33 | 45.9 | 60.1 | 83.3 | 86.2 | 107.4 | 120 | |||
| Power(KW) | 19.8 | 26.7 | 33.5 | 46.6 | 48 | 58.9 | 63.6 | ||||
| Evaporation -30℃ | Cooling capacity(KW) | 26 | 36.3 | 47.4 | 65.8 | 68.1 | 84.8 | 94.9 | |||
| Power(KW) | 19.1 | 25.8 | 32.4 | 44.9 | 46.3 | 56.8 | 61.3 | ||||
| Storage temperature( ℃) | -20～-15℃ | ||||||||||
| Refrigerant | R22 | ||||||||||
| Power supply | 380V/3P/50Hz | ||||||||||
| Max operation current (A) | 69 | 91 | 121 | 158 | 171 | 203 | 220 | ||||
| Condenser | Style | High efficient pipe-shell style | |||||||||
| Nominal flow (m^3/h) | 11 | 15 | 19 | 25 | 28 | 34 | 37 | ||||
| Port size | DN65 | DN65 | DN65 | DN80 | DN100 | DN100 | DN100 | ||||
| Port | inhale port/(mm) | Φ54 | Φ54 | Φ67 | Φ76 | Φ76 | Φ76 | Φ108 | |||
| Liquid inlet port(mm) | Φ28 | Φ28 | Φ35 | Φ35 | Φ35 | Φ35 | Φ42 | ||||
| Boundary dimensions | A (mm) | 1700 | 1700 | 2150 | 2300 | 2300 | 2600 | 2600 | |||
| B (mm) | 670 | 670 | 680 | 770 | 770 | 850 | 850 | ||||
| C (mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1250 | 1300 | ||||
| Installation dimension (a×b)(mm) | 1200*390 | 1200*390 | 1200*390 | 1200*390 | 1200*500 | 1200*500 | 1200*500 | ||||
Unit design condition: evaporation temperature -23℃, cooling water inlet 30℃, outlet 35℃, running with economizer.
| Type | HLGS | |||||||||
| 100L | 110L | 125L | 130L | 140L | 150L | |||||
| Compressor type | Type | RC2-370B | RC2-410B | RC2-470B | RC2-510B | RC2-550B | RC2-580B | |||
| Style | Semi-hermetic screw compressor | |||||||||
| Energy adjustment | 50%-75%-100% | |||||||||
| Cooling capacity and power | Evaporation -20℃ | Cooling capacity(KW) | 161.7 | 174.5 | 211.9 | 221.5 | 248.6 | 265.3 | ||
| Power(KW) | 71 | 78.6 | 90.8 | 97.3 | 107.1 | 115.2 | ||||
| Evaporation -25℃ | Cooling capacity(KW) | 129.9 | 140.1 | 170.4 | 177.9 | 199.9 | 213.2 | |||
| Power(KW) | 68.7 | 75.9 | 87.7 | 94.1 | 103.5 | 111.4 | ||||
| Evaporation -30℃ | Cooling capacity(KW) | 102.7 | 110.7 | 134.7 | 140.7 | 158.1 | 168.6 | |||
| Power(KW) | 66.2 | 73.3 | 84.6 | 90.7 | 99.8 | 107.4 | ||||
| Storage temperature( ℃) | -20～-15℃ | |||||||||
| Refrigerant | R22 | |||||||||
| Power supply | 380V/3P/50Hz | |||||||||
| Max operation current (A) | 241 | 268 | 310 | 336 | 355 | 377 | ||||
| Condenser | Style | High efficient pipe-shell style | ||||||||
| Nominal flow (m^3/h) | 40 | 45 | 53 | 56 | 61 | 66 | ||||
| Port size | DN125 | DN125 | DN125 | DN125 | DN150 | DN150 | ||||
| Port | inhale port/(mm) | Φ108 | Φ108 | Φ108 | Φ108 | Φ108 | Φ108 | |||
| Liquid inlet port(mm) | Φ42 | Φ42 | Φ42 | Φ42 | Φ42 | Φ42 | ||||
| Boundary dimensions | A (mm) | 1700 | 1700 | 2150 | 2300 | 2300 | 2600 | |||
| B (mm) | 670 | 670 | 680 | 770 | 770 | 850 | ||||
| C (mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1250 | ||||
| Installation dimension (a×b)(mm) | 1200*500 | 1500*500 | 1500*500 | 1500*500 | 1500*500 | 1500*500 | ||||
Unit design condition: evaporation temperature -23℃, cooling water inlet 30℃, outlet 35℃, running with economizer.

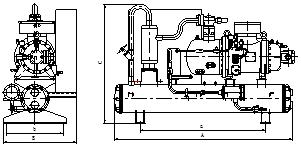

Figure of boundary dimensions and installation dimensions:
