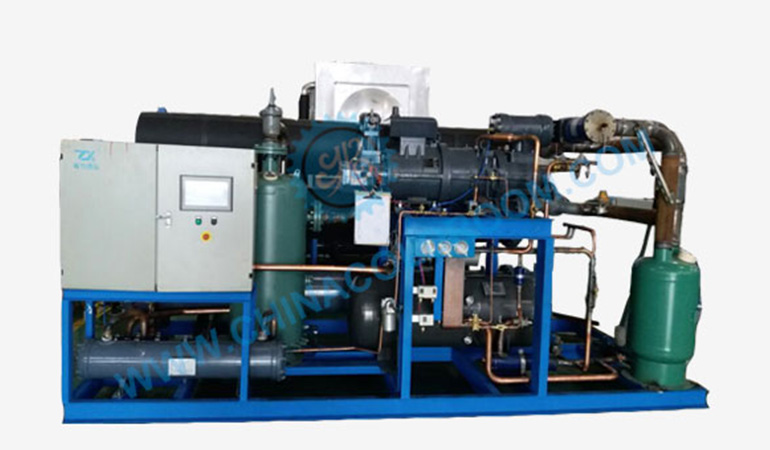

Our high end semi-hermetic water-cooled screw compressor rack stands alone with low noise, less vibrating quality, and long life.
Product Description
Our high end semi-hermetic water-cooled screw compressor rack stands alone with low noise, less vibrating quality, and long life. Featuring asymmetric 5:6 rotor screw compressor, this compressor rack ensures less energy consumption as it comes with the multi-level energy control mechanism. So, you can easily control the cooling load according to the requirements. With -5～5℃ temperature settings, this semi-hermetic water-cooled screw compressor rack meets your wide-scale refrigeration needs.
We always manufacture and test parts of all semi-hermetic water-cooled screw compressor rack carefully to maintain OEM-QUALITY standards.
Features:
· The compressor has less noise, less vibration, long life and matchless efficiency.
· Completely configured unit with world's highly reliable refrigeration accessories and parts.
· Over load, over heat, counter rotation, exhaust temperature, oil flow, oil level, and pressures level protection.
· Special protection for coil temperature
· Adjustable multiple energy regulation levels for different cooling load.
· Less energy consumption.
Main components:
· Screw compressor
· Oil separator
· Oil cooler (for air based cooling units)
· Oil returning component
· Outlet valve for sub oil
· Condenser (for water based cooling units)
· Reservoir
· Filter barrel
· Sight glass
· Spray system
· Inhale filter
· Economizer system
· Pressure protector
· Pressure gauge
· Pressure control for high, medium, and low levels
· Condenser fan
· Pressure sensor
· Control box with PCL+ and touch pad
· Storage temperature: -5～5℃
· Power supply: 380V/3P/50Hz
Moreover, this semi-hermetic water cooled screw compressor rack with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a condensing unit for other refrigerants.
Product Features
| Type | HLGS2 | |||||||
| 60M | 80M | 100M | 120M | 140M | ||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | ||
| Style | Semi-hermetic screw compressor | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | |||
| Singe compressor energy adjustment | 66%-100% | 75%-100% | ||||||
| Cooling capacity and power | Evaporation -0℃ | Cooling capacity(KW) | 160.6 | 223.4 | 291.6 | 404.8 | 418.6 | |
| Power(KW) | 44.2 | 59.4 | 74.4 | 103.4 | 106.6 | |||
| Evaporation -5℃ | Cooling capacity(KW) | 132.8 | 184.8 | 241.2 | 334.8 | 346.2 | ||
| Power(KW) | 43.2 | 58.2 | 72.8 | 101 | 104 | |||
| Evaporation -10℃ | Cooling capacity(KW) | 108.4 | 151 | 197.2 | 273.6 | 283 | ||
| Power(KW) | 42.6 | 57.2 | 71.4 | 99 | 102 | |||
| Storage temperature( ℃) | -5～5℃ | |||||||
| Refrigerant | R22 | |||||||
| Power supply | 380V/3P/50Hz | |||||||
| Max operation current (A) | 138 | 182 | 242 | 316 | 342 | |||
| Condenser | Style | High efficient pipe-shell style | ||||||
| Nominal flow (m^3/h) | 36 | 48 | 63 | 84 | 92 | |||
| Port size | DN80 | DN100 | DN100 | DN125 | DN125 | |||
| Port | inhale port/(mm) | Φ89 | Φ108 | Φ108 | Φ133 | Φ133 | ||
| Liquid supply port (mm) | Φ35 | Φ35 | Φ42 | Φ42 | Φ54 | |||
| Boundary dimensions | A (mm) | 2500 | 2500 | 2700 | 3300 | 3500 | ||
| B (mm) | 1700 | 1700 | 1700 | 1700 | 1700 | |||
| C (mm) | 1800 | 1800 | 1800 | 1900 | 1900 | |||
| Installation dimension (a×b)(mm) | 1800×1450 | 1800×1450 | 2000×1450 | 2300×1450 | 2500×1450 | |||
Unit design condition: evaporation temperature -7℃, cooling water inlet 30℃, outlet 35℃
| Type | HLGS2 | |||||||
| 160M | 180M | 200M | 220M | |||||
| Compressor type | Type | RC2-310B | RC2-340B | RC2-370B | RC2-410B | |||
| Style | Semi-hermetic screw compressor | |||||||
| Quantity | 2 | 2 | 2 | 2 | ||||
| Singe compressor energy adjustment | 75%-100% | |||||||
| Cooling capacity and power | Evaporation -0℃ | Cooling capacity(KW) | 413.2 | 581.8 | 629.8 | 679.6 | ||
| Power(KW) | 130.6 | 141 | 152.4 | 168.6 | ||||
| Evaporation -5℃ | Cooling capacity(KW) | 431 | 481.2 | 520.8 | 562 | |||
| Power(KW) | 127.2 | 137 | 148 | 164 | ||||
| Evaporation -10℃ | Cooling capacity(KW) | 353.6 | 394.8 | 427.2 | 461 | |||
| Power(KW) | 124.2 | 134 | 144.6 | 160.4 | ||||
| Storage temperature( ℃) | -5～5℃ | |||||||
| Refrigerant | R22 | |||||||
| Power supply | 380V/3P/50Hz | |||||||
| Max operation current (A) | 406 | 440 | 482 | 536 | ||||
| Condenser | Style | High efficient pipe-shell style | ||||||
| Nominal flow (m^3/h) | 113 | 124 | 134 | 148 | ||||
| Port size | DN150 | DN150 | DN150 | DN150 | ||||
| Port | inhale port/(mm) | Φ133 | Φ133 | Φ159 | Φ159 | |||
| Liquid supply port (mm) | Φ54 | Φ54 | Φ54 | Φ54 | ||||
| Boundary dimensions | A (mm) | 3500 | 3500 | 3500 | 3500 | |||
| B (mm) | 1800 | 1800 | 1900 | 1900 | ||||
| C (mm) | 2100 | 2100 | 2100 | 2150 | ||||
| Installation dimension (a×b)(mm) | 2500×1550 | 2500×1550 | 2500×1650 | 2500×1650 | ||||
Unit design condition: evaporation temperature -7℃, cooling water inlet 30℃, outlet 35℃
| Type | HLGS3 | ||||||||
| 90M | 120M | 150M | 180M | 210M | |||||
| Compressor type | Type | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | |||
| Style | Semi-hermetic screw compressor | ||||||||
| Quantity | 3 | 3 | 3 | 3 | 3 | ||||
| Singe compressor energy adjustment | 66%-100% | 75%-100% | |||||||
| Cooling capacity and power | Evaporation -0℃ | Cooling capacity(KW) | 240.9 | 335.1 | 437.4 | 607.2 | 627.9 | ||
| Power(KW) | 66.3 | 89.1 | 111.6 | 155.1 | 159.9 | ||||
| Evaporation -5℃ | Cooling capacity(KW) | 199.2 | 277.2 | 361.8 | 502.2 | 519.3 | |||
| Power(KW) | 64.8 | 87.3 | 109.2 | 151.5 | 156 | ||||
| Evaporation -10℃ | Cooling capacity(KW) | 162.6 | 226.5 | 295.8 | 410.4 | 424.5 | |||
| Power(W) | 63.9 | 85.8 | 107.1 | 148.5 | 153 | ||||
| Storage temperature( ℃) | -5～5℃ | ||||||||
| Refrigerant | R22 | ||||||||
| Power supply | 380V/3P/50Hz | ||||||||
| Max operation current (A) | 207 | 273 | 363 | 474 | 513 | ||||
| Condenser | Style | High efficient pipe-shell style | |||||||
| Nominal flow (m^3/h) | 54 | 73 | 94 | 474 | 513 | ||||
| Port size | DN100 | DN125 | DN125 | DN150 | DN150 | ||||
| Port | inhale port/(mm) | 2×Φ89 | 2×Φ89 | 2×Φ89 | 2×Φ108 | 2×Φ108 | |||
| Liquid supply port (mm) | Φ42 | Φ42 | Φ54 | Φ54 | Φ54 | ||||
| Boundary dimensions | A (mm) | 3000 | 3000 | 3500 | 3500 | 3500 | |||
| B (mm) | 1700 | 1700 | 1700 | 1700 | 1700 | ||||
| C (mm) | 1800 | 1800 | 1800 | 1900 | 1900 | ||||
| Installation dimension (a×b)(mm) | 2500×1450 | 2500×1450 | 2500×1450 | 2500×1450 | 2500×1450 | ||||
Unit design condition: evaporation temperature -7℃, cooling water inlet 30℃, outlet 35℃

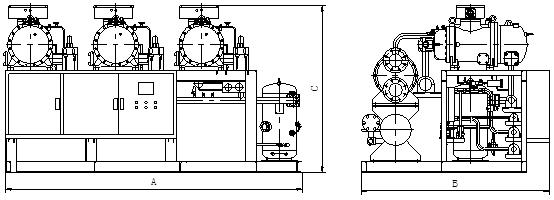

Installation dimensions:
